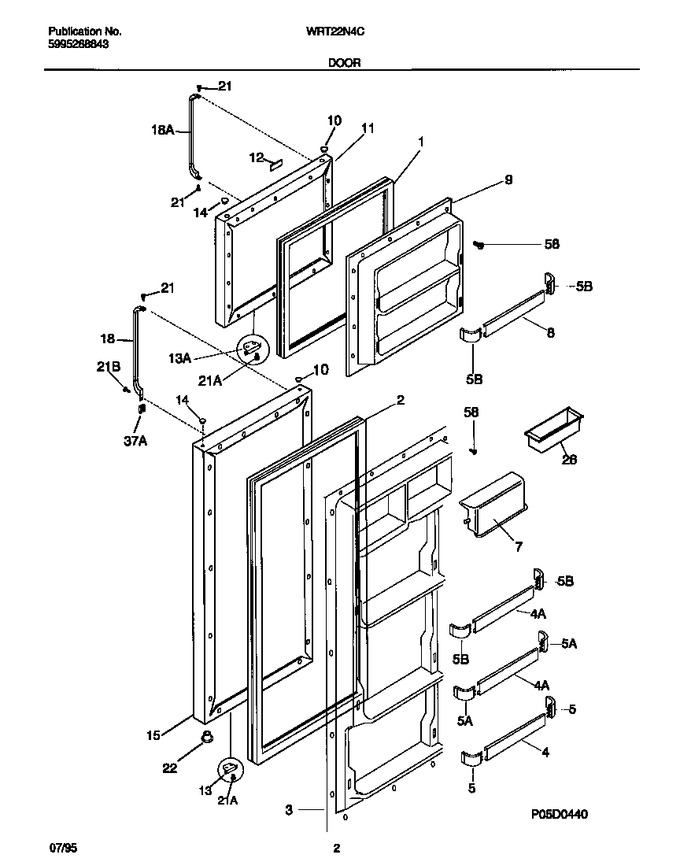

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215776715		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	215732417		Gasket, Refr Door, White, Magnetic		Appelez-nous	-
3	218477601		Panel-inner Door, Refr		Appelez-nous	-
4	215366002		Rack-door   (Replaces: 218027083)			Immediately	$ 65.83
5	215473602		Support-door Rack, Rh/lh   (Replaces: 215473601)			Immediately	$ 11.58
7	215058112		Door-dairy, 12.96`` Wide		Appelez-nous	-
8	218027076		Rack-door, (2)		Appelez-nous	-
9	215278301		Panel-inner Door, Frzr		Appelez-nous	-
10	5303292413		Plug-button, White, Hinge Brg Hole				$ 4.94
11	218240801		Panel-frzr Door, White, W/foam Insulatn		Appelez-nous	-
12	215366301		Frame - Nameplate,white		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
14	215352101		Plug-button, White, Handle Mtg		Appelez-nous	-
15	218240901		Panel-refr Door, White, W/foam Insulatn		Appelez-nous	-
18	215915529		Handle-door, White, Refr, W/handle Ends				$ 150.57
21	218214301		Screw-handle Mtg, White, Cr Oval Head, 8-18 X 5/8		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
58	5308002748		Screw		Appelez-nous	-
*51560	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
13A	215030001		Door Stop, White, Frzr				$ 29.61
18A	215915531		Handle-door, White, Frzr, W/handle Ends		Appelez-nous	-
21A	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
21B	215733200		Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2		Appelez-nous	-
37A	215480205		Trim-handle, End Cap, White, Refr Door		Appelez-nous	-
4A	218027084		Rack-door, (2)		Appelez-nous	-
5A	215316301		Support-door Rack, ``gallon``, Rh/lh		Appelez-nous	-
5B	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
NI	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double-faced (not Illustrated)		Appelez-nous	-
NI	215220338		Label-nameplate, White (not Illustrated)		Appelez-nous	-
