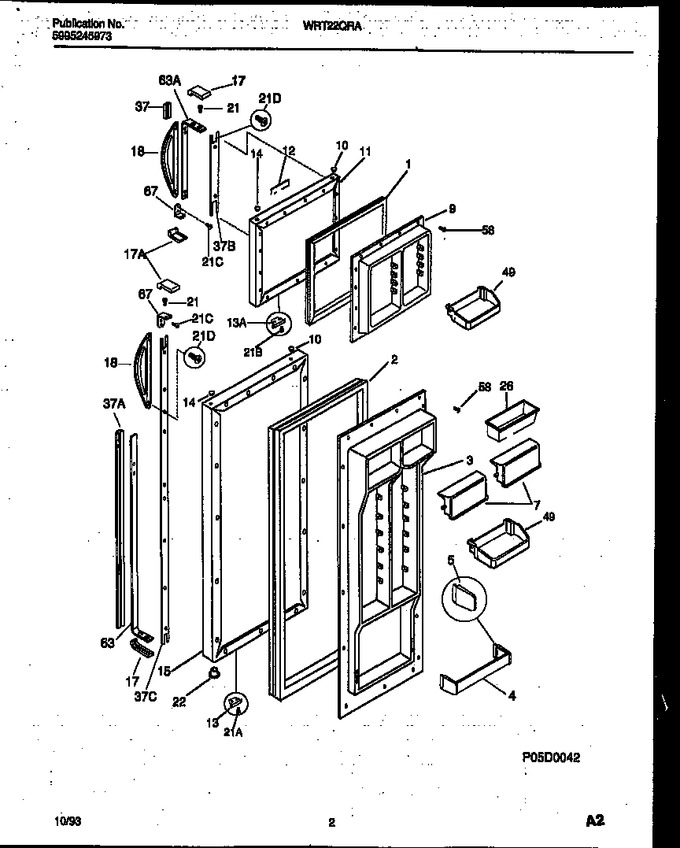

02 - Door Parts


03 - Cabinet Parts


05 - Shelves And Supports


07 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303292373		Gasket-frzr Door, Magnetic, White		Appelez-nous	-
2	5303292369		Gasket-refr Door, Magnetic, White		Appelez-nous	-
3	5303292376		Panel-inner Door, Refr		Appelez-nous	-
4	215366050		Rack-door, Full-width		Appelez-nous	-
5	215473602		Support-door Rack, Rh/lh   (Replaces: 215473601)			Immediately	$ 11.58
7	215058102		Door-dairy, (2)		Appelez-nous	-
9	5303292371		Panel, Inner Door, Frzr		Appelez-nous	-
10	5303292413		Plug-button, White, Hinge Brg Hole				$ 4.94
11	215676801		Panel-frzr Door, White, W/foam Insulatn		Appelez-nous	-
12	215220201		Frame-nameplate, White		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
14	215352101		Plug-button, White, Handle Mtg		Appelez-nous	-
15	215677001		Panel-refr Door, White, W/foam Insulatn		Appelez-nous	-
17	215422200		Handle End, Chrome		Appelez-nous	-
18	215339701		Handle-door, White		Appelez-nous	-
21	215201400		Screw-handle Brkt Mtg, Torx Flat Head, 8-18(ab) X 5/8		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
37	215399206		Trim-handle, 5.22`` White, Upper		Appelez-nous	-
49	5303299395		Bin-utility, Gallon, White		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
63	215369703		Rail-handle Trim Mtg, 29.19``		Appelez-nous	-
67	215809700		Bracket-handle Mtg, (2)		Appelez-nous	-
13A	215030001		Door Stop, White, Frzr				$ 29.61
17A	215951200		Handle End, Chrome		Appelez-nous	-
21A	215218600		Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4		Appelez-nous	-
21B	215218700		Screw-door Stop Mtg, Torx Pan Head,10-16 X 3/4		Appelez-nous	-
21C	218033500		Screw-handle/brkt, Flat Head, 10-32 X 5/16		Appelez-nous	-
21D	215410900		Screw-handle Mtg, Hex Head, 10-32 X 3/8		Appelez-nous	-
37A	215399204		Trim-handle, 27.93``, White, Lower		Appelez-nous	-
37B	215219802		Trim-handle, 18.86`, Black/silver		Appelez-nous	-
37C	215219804		Trim-handle, 41.57``, Black/silver		Appelez-nous	-
49A	5303299396		Bin-utility, 2-liter, White		Appelez-nous	-
63A	215369701		Rail-handle Trim Mtg ,6.48``		Appelez-nous	-
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
NI	215220301		Label-nameplate, White		Appelez-nous	-
NI	215562101		Plug-button, White, Refr Door Front (non-illustrated)		Appelez-nous	-
NI	215518000		Magnet-nameplate (non-illustrated)		Appelez-nous	-
