SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System


06 - Ice Maker Wiring Diagram

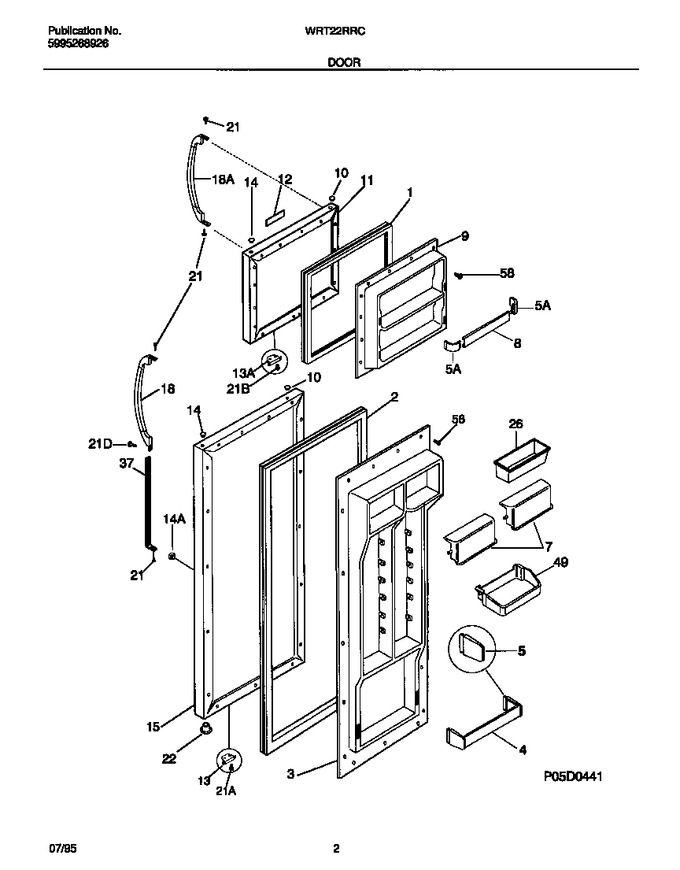

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215776705		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	215732407		Gasket, Refr Door, Almond, Magnetic		Appelez-nous	-
3	215784001		Panel, Inner Door, Refr		Appelez-nous	-
4	218027077		Rack-door		Appelez-nous	-
5	215473602		Support-door Rack, Rh/lh   (Replaces: 215473601)			Immediately	$ 11.58
7	215058112		Door-dairy, 12.96`` Wide		Appelez-nous	-
8	218027076		Rack-door, (2)		Appelez-nous	-
9	215278301		Panel-inner Door, Frzr		Appelez-nous	-
10	5303292414		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	218240811		Panel-frzr Door, Almond, W/foam Insulatn		Appelez-nous	-
12	215366311		Frame - Nameplate, Almond		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
14	215352111		Plug-button, Almond, Handle Mtg		Appelez-nous	-
15	218240911		Panel-refr Door, Almond, W/foam Insulatn		Appelez-nous	-
18	215915530		Handle-door, Almond, Refr, W/handle Ends				$ 137.71
21	218214302		Screw-handle Mtg, Almond, Cr Oval Head, 8-18 X 5/8		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
37	215482229		Trim-handle, 22.764, Almond, Refr Door, W/end Cap		Appelez-nous	-
49	5303309864		Bin-door, Gallon		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*48640	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
13A	215030011		Door Stop, Almond, Frzr		Appelez-nous	-
14A	215352211		Plug-button,almond ,refr Door Front ,		Appelez-nous	-
18A	215915532		Handle-door, Almond, Frzr, W/handle Ends		Appelez-nous	-
21A	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
21B	215218700		Screw-door Stop Mtg, Torx Pan Head,10-16 X 3/4		Appelez-nous	-
21D	215733200		Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2		Appelez-nous	-
5A	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
NI	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double-faced (not Illustrated)		Appelez-nous	-
NI	5303310581		Bin-door, 2-liter		Appelez-nous	-
NI	215220340		Label-nameplate, Almond (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
