SELECT A DIAGRAM

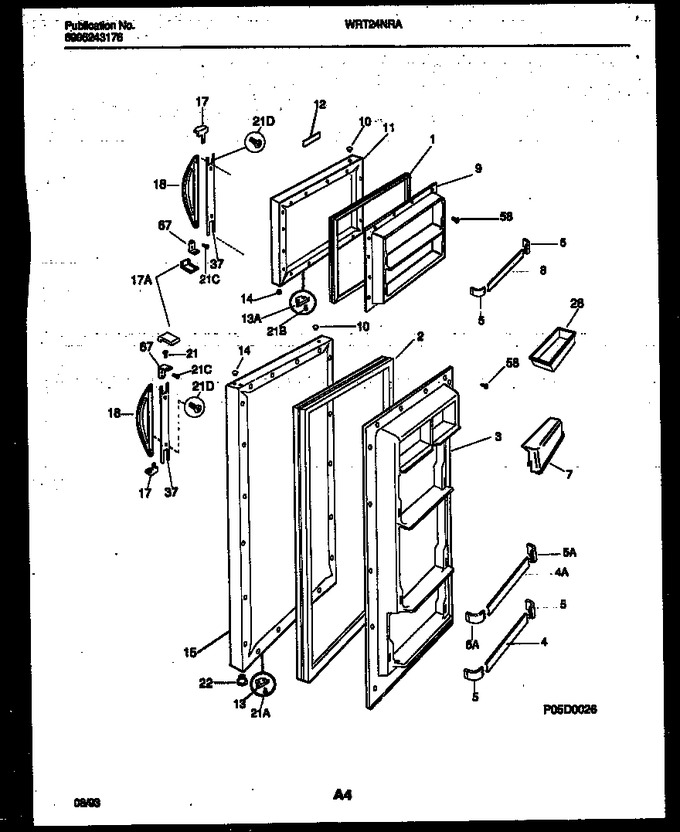

03 - Door Parts


04 - Cabinet Parts


06 - Shelves And Supports


08 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303292419		Gasket-frzr Door, Magnetic, Almond		Appelez-nous	-
2	5303292421		Gasket-refr Door, Magnetic, Almond		Appelez-nous	-
3	215251801		Panel-inner Door, Refr		Appelez-nous	-
4	215366002		Rack-door   (Replaces: 215366086)			Immediately	$ 65.83
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
7	215002807		Door-dairy, (2)		Appelez-nous	-
8	215366087		Rack-door, (2)		Appelez-nous	-
9	215252001		Panel-inner Door, Frzr		Appelez-nous	-
10	5303292414		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	215674811		Panel-frzr Door, Almond, W/ Foam Insula		Appelez-nous	-
12	215220211		Frame-nameplate, Almond		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
14	215352111		Plug-button, Almond, Handle Mtg		Appelez-nous	-
15	215674911		Panel-refr Door, Almond, W/ Foam Insula		Appelez-nous	-
17	215422000		Handle End, Chrome		Appelez-nous	-
18	215339711		Handle-door, Almond		Appelez-nous	-
21	215201400		Screw-hndl Brkt Mtg, Torx Flat Head, 8-18(ab) X 5/8		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
37	215219801		Trim-handle, 13.82``, Black/silver		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
67	215809700		Bracket-handle Mtg, (2)		Appelez-nous	-
13A	215030011		Door Stop, Almond, Frzr		Appelez-nous	-
17A	215422200		Handle End, Chrome		Appelez-nous	-
21A	215218600		Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4		Appelez-nous	-
21B	215218700		Screw-door Stop Mtg, Torx Pan Head,10-16 X 3/4		Appelez-nous	-
21C	215416100		Screw-handle/brkt, Flat Head, Cr, 10-32 X 7/16		Appelez-nous	-
21D	215410900		Screw-handle Mtg, Hex Head, 10-32		Appelez-nous	-
4A	215366085		Rack-door, (2)		Appelez-nous	-
5A	215316301		Support-door Rack, ``gallon``, Rh/lh		Appelez-nous	-
NI	215352211		Plug-button, Almond, Refr Door Front (non-illustrated)		Appelez-nous	-
NI	215518000		Magnet-nameplate (non-illustrated)		Appelez-nous	-
NI	215220304		Label-nameplate, Almond (non-illustrated)		Appelez-nous	-
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
