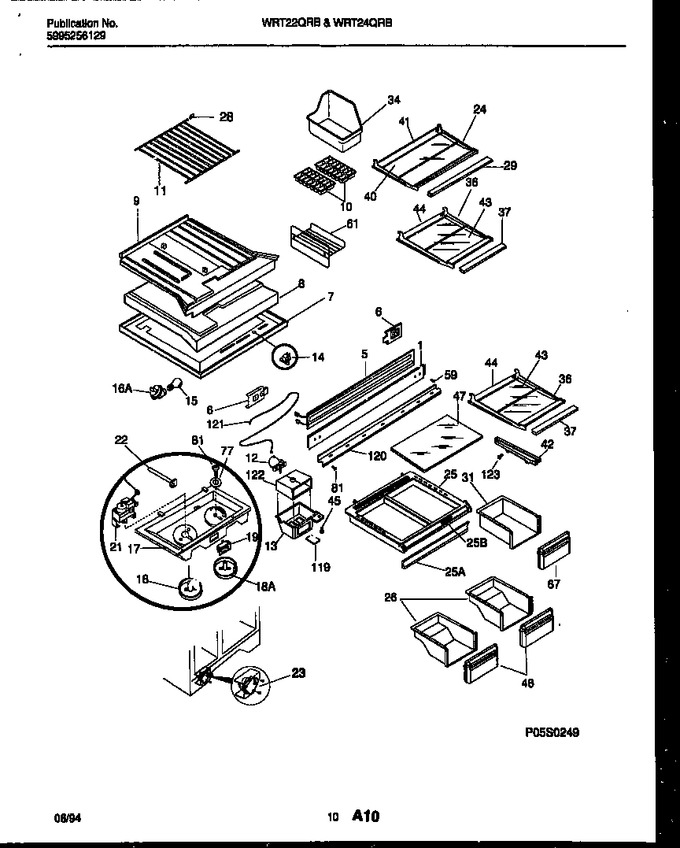

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215002202		Mullion, White		Appelez-nous	-
5	215099600		Heater, Mullion		Appelez-nous	-
6	215096700		Tapping Plate,mullion Mtg,(2)		Appelez-nous	-
7	215028104		Top Panel, Refr		Appelez-nous	-
8	215038601		Divider, Styrofoam		Appelez-nous	-
9	215033800		Bottom Panel, Frzr		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
11	5303304568		Shelf, Freezer, Flat, Full, Width, Wire		Appelez-nous	-
12	215132300		Deflector, Air, ``paddle``		Appelez-nous	-
13	215420300		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
17	215932903		Box-control		Appelez-nous	-
18	5303296667		Knob-temp Control,refr		Appelez-nous	-
19	5303286905		Switch-energy Saver				$ 27.08
21	5303303674		Control-temperature				$ 163.75
22	215932100		Housing,cont Cap Tube		Appelez-nous	-
23	215846602		Timer   (Replaces: 5303275811)			Immediately	$ 28.20
24	215919146		Frame-full Shelf, Cantilever		Appelez-nous	-
25	215216608		Cover, Crisper Pan, With Beam, Trim, Humid Cont		Appelez-nous	-
26	5303292432		Pan, Crisper, (2)		Appelez-nous	-
28	215341200		Cap-protector				$ 2.54
29	215919707		Trim-full Shelf, Front		Appelez-nous	-
31	5303292434		Pan-meat		Appelez-nous	-
34	5303212918		Container-ice				$ 104.66
36	215919145		Frame-half Shelf, Cantilever		Appelez-nous	-
37	215919714		Trim-half Shelf, Front		Appelez-nous	-
40	215723524		Glass-full Shelf		Appelez-nous	-
41	215919807		Trim-full Shelf, Rear		Appelez-nous	-
42	215002301		Hander-pan/tray, Lh				$ 65.82
43	215723525		Glass-half Shelf		Appelez-nous	-
44	215919814		Trim-half Shelf, Rear (2)		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	5303304847		Front-crisper Pan, (2)		Appelez-nous	-
47	5303294005		Insert, Pan Cover, Glass		Appelez-nous	-
59	240442708		Screw-hinge/mullion , 10-32 X 5/8   (Replaces: 218188000)				$ 8.34
61	215781501		Shelf-ice Tray, Wire				$ 136.19
67	5303305492		Front-meat Pan		Appelez-nous	-
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
120	218019202		Seal-refr Top		Appelez-nous	-
121	215364001		Cable-damper Contrl				$ 82.01
122	215132501		Block-air Deflector		Appelez-nous	-
123	215005101		Screw-roller/hanger,8-10 X 7/16   (Replaces: 215005100)				$ 14.89
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
18A	5303296668		Knob-temp Control,frzr		Appelez-nous	-
25A	5303300010		Trim-crisper Cover		Appelez-nous	-
25B	5303292403		Control, Humidity		Appelez-nous	-
NI	215848000		Spacer-air Channel		Appelez-nous	-
NI	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
NI	5303289058		Shield-defrost Timr, Btm (non-illustrated)		Appelez-nous	-
NI	5303001260		Screw				$ 6.73
NI	215935700		Nut-anchor,control Box Mtg (non-illustrated)		Appelez-nous	-
NI	5308016567		Nut-anchor (non-illustrated)		Appelez-nous	-
NI	215363900		Washer-air Deflectr (non-illustrated)		Appelez-nous	-
NI	215363800		Spacer-air Deflectr(non-illustrated)		Appelez-nous	-
NI	215934600		Spacer-frzr Shelf (non-illustrated)		Appelez-nous	-
NI	5303209274		Retainer-glass (non-illustrated)		Appelez-nous	-
NI	215002401		Hanger-pan/tray,rh (non-illustrated)				$ 85.84
NI	5303001380		Screw		Appelez-nous	-
NI	215209400		Nut,push-on,damper Cable (non-illustrated)		Appelez-nous	-
NI	215339900		Clip-cantilever Shlf				$ 5.83
NI	215277000		Cover-defrost Timer, Top (non-illustrated)		Appelez-nous	-
