SELECT A DIAGRAM

01 - Base & Drive (orig. - Rev. D)


02 - Control Panel (orig. - Rev. D)

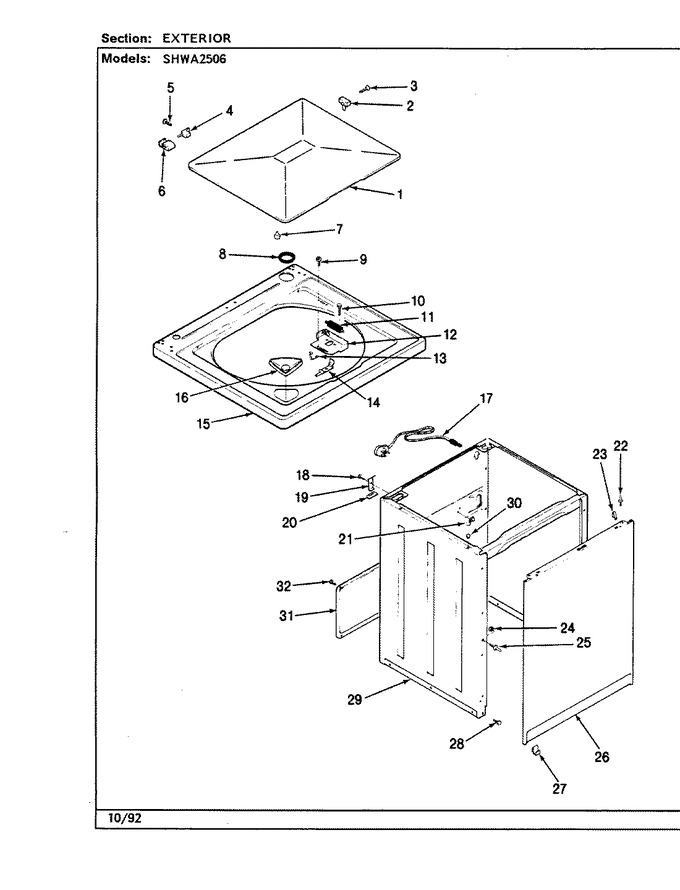

03 - Exterior ( Orig. - Rev. D)


04 - Transmission (orig. - Rev. D)


05 - Tub (orig. - Rev. D)


06 - Water Carrying


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	35-2026		Lid (wht) (door)				$ 168.05
2	25-7436		Nylite Washer		Appelez-nous	-
2	WP43-0057		Actuator, Door Switch   (Replaces: 43-0057)				$ 73.22
3	25-7438		Screw		Appelez-nous	-
4	WP35-2045		Pin, Hinge   (Replaces: 35-2045)			Immediately	$ 18.03
4	25-7086		Washer		Appelez-nous	-
5	WP25-7893		Screw   (Replaces: 25-7893)				$ 7.14
6	WP35-2044		Hinge, Lid   (Replaces: 35-2044)			Immediately	$ 7.52
7	35-0581		Bumper, Door (lid)		Appelez-nous	-
8	35-2063		Bushing, Insulator		Appelez-nous	-
9	25-7463		Screw		Appelez-nous	-
10	25-7437		Screw		Appelez-nous	-
11	35-2814		Switch, Lid		Appelez-nous	-
12	35-2795		Bracket, Lid Switch		Appelez-nous	-
13	25-7878		Clip		Appelez-nous	-
14	35-2805		Door Switch Lever (ss)		Appelez-nous	-
15	35-2739		Top, Cabinet (wht)		Appelez-nous	-
16	35-2731		Dispenser, Bleach		Appelez-nous	-
17	35-0680		Cord, Power		Appelez-nous	-
18	WP25-7893		Screw   (Replaces: 25-7893)				$ 7.14
19	35-2846		Hinge   (Replaces: 33-7450)				$ 22.94
20	33-0930		Pad, Top Hinge		Appelez-nous	-
21	WP596669		Clamp, Pressure Switch Hose   (Replaces: 25-7796)			Immediately	$ 7.56
22	53-0643		Pin, Locator		Appelez-nous	-
23	WP25-7220		Clip, Cabinet Top   (Replaces: 25-7220)				$ 10.77
24	WP3400029		Nut, Locator Pin   (Replaces: 25-0224)			Immediately	$ 6.98
25	53-0643		Pin, Locator		Appelez-nous	-
26	35-2084		Panel, Front (wht)		Appelez-nous	-
27	53-0120		Clip, Front Panel				$ 11.32
28	33-2653		Bumper, Cabinet		Appelez-nous	-
29	35-2106		Cabinet Assy. (wht)		Appelez-nous	-
30	33-2653		Bumper, Cabinet		Appelez-nous	-
31	35-2108		Shield,rear(nla,order Cab Kit)		Appelez-nous	-
32	WP681414		Screw   (Replaces: 25-7733)			Immediately	$ 7.07

    View Diagram in Separate Window       Print Part List
