SELECT A DIAGRAM

01 - Control Panel (skg9611x540r)


02 - Door/drawer (skg9611x540r)


03 - Gas Controls


04 - Oven


05 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4002F166-45		Back, Broiler	01	Appelez-nous	-
2	3601W124-16		Baffle, Ovn Front	01	Appelez-nous	-
3	4011F161-80		Bottom, Broiler	01	Appelez-nous	-
3	WP7101P126-60		Screw   (Replaces: 7101P061-60)	01		Immediately	$ 6.85
4	W10116822		Bottom, Oven	01	Appelez-nous	-
5	7402P014-60		Cord, Power	01	Appelez-nous	-
6	2201F074-19		Frame, Lower Oven	01	Appelez-nous	-
6	WP7101P126-60		Screw   (Replaces: 7101P061-60)	01		Immediately	$ 6.85
7	W10124350		Not Required Part Or See Note	01	Appelez-nous	-
7	WP74003976		Screw W/washer   (Replaces: 7101P124-60)	01			$ 6.47
8	7212P001-60		Seal	01	Appelez-nous	-
9	4396923		Insert, Broil Pan   (Replaces: 3413F002-19)	01		Immediately	$ 52.04
10	WP7112P004-60		Clip, Thermostat   (Replaces: 7112P004-60)	01		Immediately	$ 11.07
11	WP7101P126-60		Screw   (Replaces: 7101P061-60)	01		Immediately	$ 6.85
11	4009F045-45		Lining, Broiler Side	01	Appelez-nous	-
12	4396923		Pan, Broil   (Replaces: 3401F004-19)	01		Immediately	$ 52.04
13	7801P030-60		Rack, Oven	01			$ 57.14
14	3807F205-45		Support, Oven Rear	01	Appelez-nous	-
15	3404A013-51		Track, Broiler Dwr Right	01	Appelez-nous	-
15	3404A014-51		Track, Broiler Dwr Left	01	Appelez-nous	-
15	WP7101P126-60		Screw   (Replaces: 7101P061-60)	01		Immediately	$ 6.85
15	WP4159193		Screw   (Replaces: 7101P115-60)	01			$ 4.29
16	8007P003-60		Bushing, Snap	01	Appelez-nous	-
16	7401P012-60		Block, Disconnect	01	Appelez-nous	-
16	3801F020-45		Bracket	01	Appelez-nous	-
17	40A15		Bulb, Oven   (Replaces: 7407P026-60)	01		Immediately	$ 1.98
18	4005F088-80		Cover	01	Appelez-nous	-
18	7408P002-60		Receptacle, Lamp	01	Appelez-nous	-
19	4001F016-19		Housing, Lamp	01	Appelez-nous	-

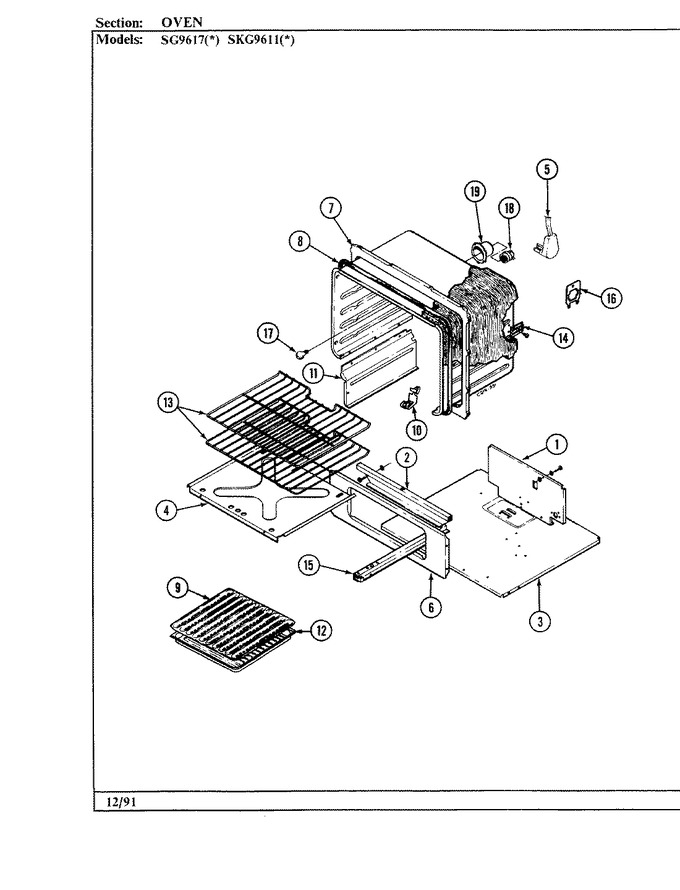

    View Diagram in Separate Window       Print Part List
