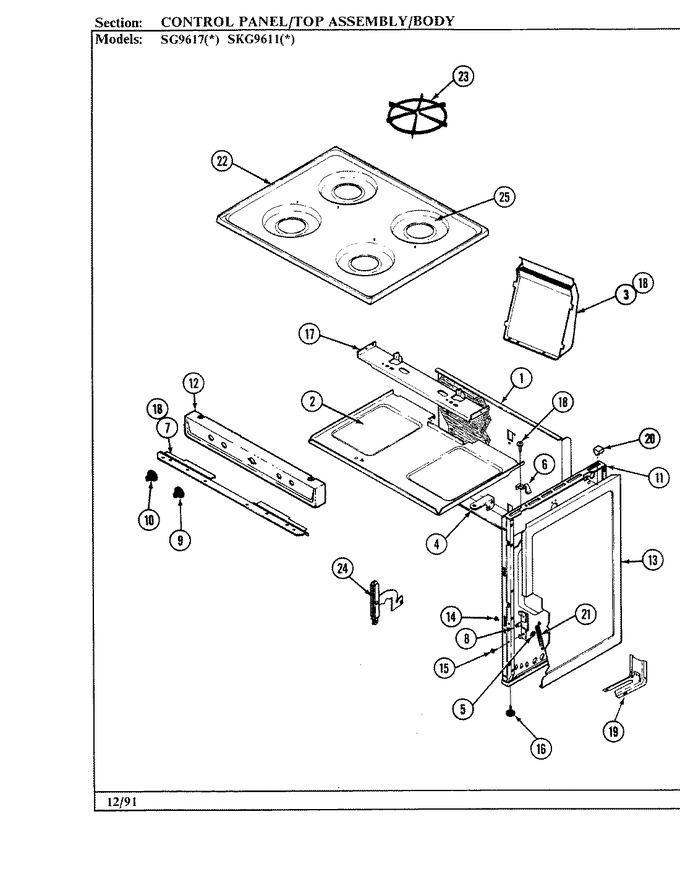

05 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F165-80 | Back, Main | 01 |
|
- | ||||
| 1 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 2 | 4011F196-80 | Box, Burner | 01 |
|
- | ||||
| 3 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 3 | 4006W026-80 | Box, Flue | 01 |
|
- | ||||
| 4 | 3801F049-34 | Bracket,control Panel (l) | 01 |
|
- | ||||
| 4 | 3801F047-34 | Bracket,control Panel (r) | 01 |
|
- | ||||
| 5 | 7112P019-60 | Clip, Hinge Pin | 01 |
|
- | ||||
| 6 | 7112P073-60 | Clip, Top Retainer | 01 |
|
- | ||||
| 7 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 01 |
|
$ 15.94 | ||||
| 7 | 4012F021-80 | Front, Burner Box | 01 |
|
- | ||||
| 8 | 3418A029-34 | Hinge Assy. (lt) | 01 |
|
$ 48.47 | ||||
| 8 | 3418A030-34 | Hinge Assy. (rt) | 01 |
|
- | ||||
| 8 | 8016P008-60 | Glide, Oven Door Hinge | 01 |
|
- | ||||
| 9 | 7731P062-60 | Knob, Thermostat | 01 |
|
- | ||||
| 10 | WP7711P135-60 | Knob, Valve (Replaces: 7711P135-60) | 01 |
|
$ 25.06 | ||||
| 11 | 4009W078-80 | Lining, Inner Side | 01 |
|
- | ||||
| 11 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 11 | 8008P012-60 | Grommet, Nylon | 01 |
|
- | ||||
| 11 | 7103P045-60 | Nut, Nylon | 01 |
|
- | ||||
| 12 | 7728P057-60 | Trim, Manifold Insert | 01 |
|
- | ||||
| 12 | 2616F010-81 | Panel, Upper Front (wht) | 01 |
|
- | ||||
| 13 | 2618F073-71 | Panel, Side (wht)----na | 01 |
|
- | ||||
| 14 | 7113P002-60 | Pin, Hinge | 01 |
|
$ 9.05 | ||||
| 15 | WP4159193 | Screw (Replaces: 7101P112-60) | 01 |
|
$ 4.29 | ||||
| 16 | Y7101P25460 | Leg, Leveling | 01 |
|
- | ||||
| 17 | 3807F347-51 | Support, Top Burner | 01 |
|
- | ||||
| 18 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 19 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 01 |
|
Immediately | $ 4.69 | |||
| 19 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 01 |
|
$ 26.33 | ||||
| 20 | 8003P011-60 | Spacer, Main Top | 01 |
|
- | ||||
| 21 | WP7803P058-60 | Spring, Ov Dr (Replaces: 7803P055-60) | 01 |
|
$ 16.55 | ||||
| 22 | 2001F040-81 | Top, Main White | 01 |
|
- | ||||
| 23 | 2003F003-00 | Grate, Burner | 01 |
|
- | ||||
| 24 | 3420A033-34 | Stop, Oven Door | 01 |
|
- | ||||
| 25 | 1430345 | Gas Drip Bowl Kit | 01 |
|
- |
