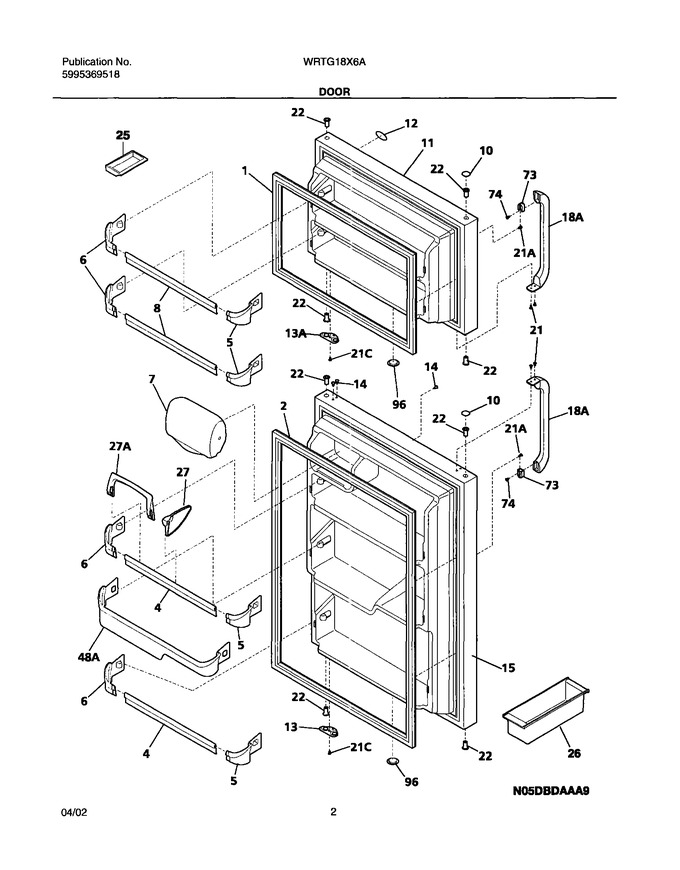

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240331410		Rack-door		Appelez-nous	-
5	240311502		Support-door Rack,2 Liter ,rh			Immediately	$ 11.34
6	240311501		Support-door Rack,2 Liter ,lh			Immediately	$ 11.34
7	240337712		Door-dairy,w/ Graphics ,clear   (Replaces: 240337707)			Immediately	$ 36.41
8	240331411		Rack-door		Appelez-nous	-
10	240381302		Plug-button,bisque ,hinge Brg Hole ,(2)				$ 19.06
11	240420102		Door,frzr ,bisque		Appelez-nous	-
12	240415701		Nameplate		Appelez-nous	-
13	240312423		Door Stop,bisque ,ref   (Replaces: 240312407)				$ 12.13
14	240494002		Plug-button,bisque				$ 41.12
15	240420202		Door,refr ,bisque				$ 359.84
21	5304515677		Screw,truss Hd Quad ,no.10-16 X .500   (Replaces: 240383401)			Immediately	$ 19.23
22	5304507146		Bearing-hinge,natural Color ,(8)   (Replaces: 240311201)			Immediately	$ 7.59
25	5308000716		Dish-butter				$ 20.48
26	3204522		Container-egg				$ 98.33
27	240396301		Snugger		Appelez-nous	-
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.09
96	240345505		Plug,door Foam Hole ,white				$ 12.90
13A	240312408		Door Stop,bisque ,frzr		Appelez-nous	-
18A	218397511		Handle-door,bisque ,w/block & Screw		Appelez-nous	-
21A	240521303		Screw,no.10-16 X 1/2   (Replaces: 240521301)			Immediately	$ 30.20
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
27A	240396102		Retainer,tall Bottle   (Replaces: 240396101)				$ 19.13
48A	240383901		Bin-door,2-liter			Immediately	$ 56.87
F1	241872501		Gasket-frzr Door,white ,magnetic   (Replaces: 240514601)			Immediately	$ 134.19
F2	241872504		Gasket-refr Door,white ,magnetic   (Replaces: 240514604)			Immediately	$ 183.39
