SELECT A DIAGRAM

01 - Cover

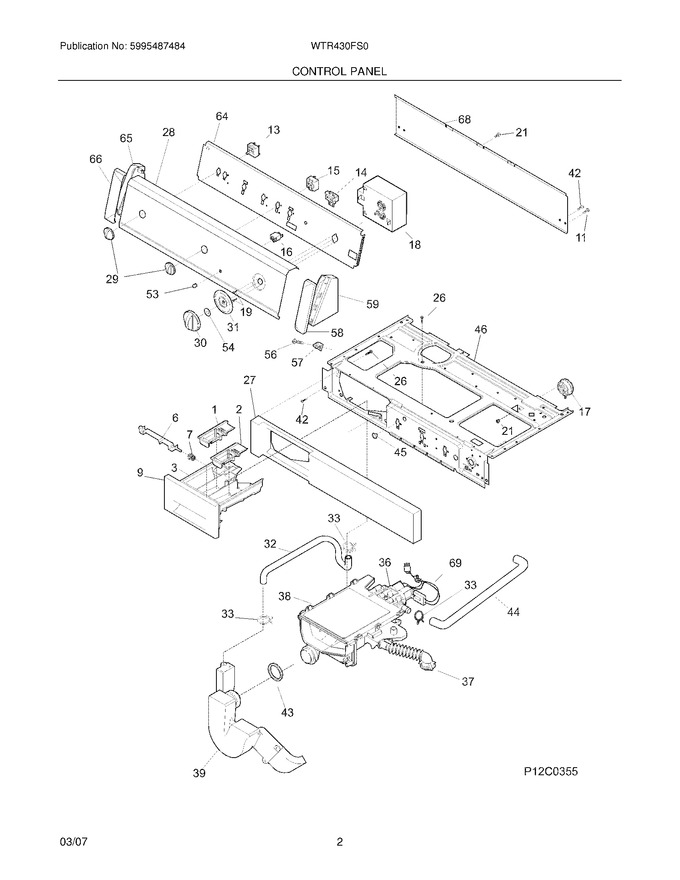

03 - Control Panel


05 - Cabinet/top


07 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131272100		Cover-bleach				$ 42.50
2	131272000		Cover-softener				$ 71.66
3	131271910		Drawer,dispenser				$ 52.03
6	131714900		Latch,drawer Handle ,white				$ 44.94
7	131427500		Spring				$ 14.07
9	131729500		Handle,dispenser ,with Trim				$ 150.03
11	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
16	131724700		Lamp,status Light				$ 59.59
19	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 10.46
21	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
26	131823400		Screw,8-18 X 2.00				$ 1.42
27	131870600		Panel,disp Drawer Mt.				$ 204.49
28	134476600		Panel,trimplate ,console Front		Appelez-nous	-
29	131141105		Knob,rotary ,white/dk Gray				$ 33.34
30	131140601		Knob-timer-white				$ 65.21
31	131140705		Dial,timer Pointer ,white ,gray Indicator				$ 30.93
32	131786100		Hose,siphon/valve				$ 66.62
33	134737300		Clamp   (Replaces: 131306216)				$ 20.13
37	131271600		Hose-tub				$ 90.01
39	131863300		Siphon				$ 30.96
42	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
43	131749200		Gasket-seal				$ 20.33
44	131786000		Hose-dispenser				$ 114.98
45	5303321107		Bushing,idler				$ 4.52
46	134191412		Panel,control Mtg. ,wing Bend				$ 168.89
53	131724800		Lens,status Light ,clear				$ 12.06
54	5308015493		Spacer,washer ,timer Shaft				$ 14.36
56	131266330		Screw,8-18 X 1.250				$ 7.63
57	131197000		Clip-console Mtg				$ 13.62
58	131122601		Cover-end Cap, White, Rh				$ 47.20
59	131122701		End Cap, White, Rh				$ 53.29
64	134487900		Bracket,control Mtg.		Appelez-nous	-
65	131122714		End Cap,white ,lh				$ 32.32
66	131122611		Cover-end Cap, White, Lh				$ 42.21
68	134088700		Panel,console Back		Appelez-nous	-
F13	134397500		Switch,temperature ,3 Position				$ 26.25
F14	134086900		Buzzer-non Adjustable		Appelez-nous	-
F15	131243200		Switch,2 Position		Appelez-nous	-
F17	134438301		Switch,pressure ,water Optimizer				$ 49.14
F18	134378300		Timer		Appelez-nous	-
F36	131974700		Valve,dispenser ,w/seal			Immediately	$ 104.10
F38	131803710		Dispenser Assy				$ 339.83
F69	134571300		Wiring Harness,main		Appelez-nous	-
NI	131931201		Dampener,vibration ,3.5 X 2 X 2 In. ,foam				$ 14.02
NI	134092500		Wiring Harness,console				$ 189.58
NI	131307900		Clamp,siphon/bellows				$ 11.34

    View Diagram in Separate Window       Print Part List
