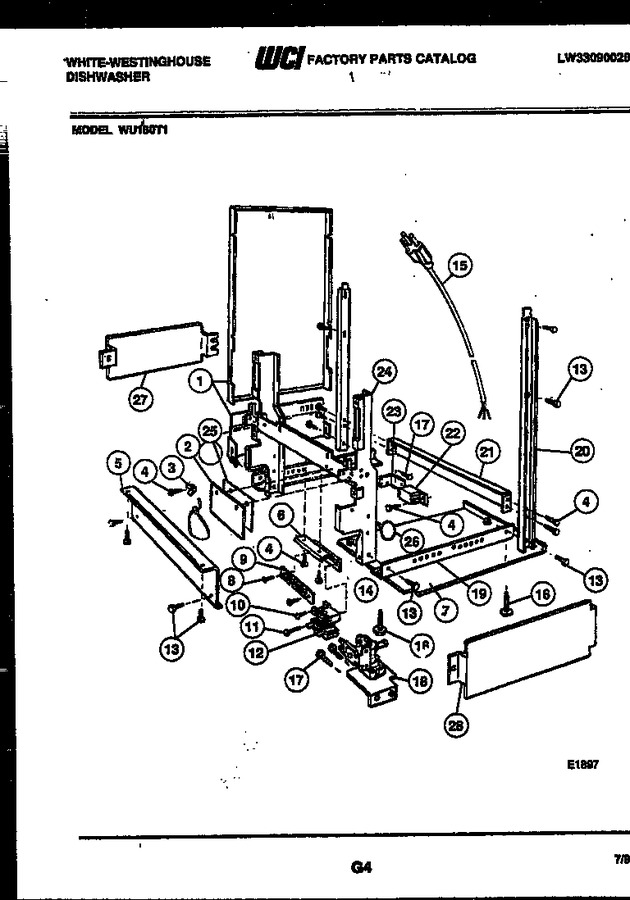

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3018190		Side Panel Kit (reversible - Right Or Left) Avocado		Appelez-nous	-
2	809144		Shield-wire		Appelez-nous	-
3	3018047		Terminal Grounding		Appelez-nous	-
4	3018034		Screw		Appelez-nous	-
5	3018137		Toe Plate		Appelez-nous	-
6	3018138		Bracket		Appelez-nous	-
7	5300808436		Pan - Bottom		Appelez-nous	-
8	3018065		Screw		Appelez-nous	-
9	3018139		Terminal Block		Appelez-nous	-
10	3018140		Screw		Appelez-nous	-
11	3018141		Screw		Appelez-nous	-
12	5303014653		Relay - Motor		Appelez-nous	-
13	3018142		Screw		Appelez-nous	-
14	3018143		Nut		Appelez-nous	-
15	3018144		Power Cord Kit (use Only When Local Codes Permit)		Appelez-nous	-
16	3018145		Leveler		Appelez-nous	-
17	3018146		Screw		Appelez-nous	-
18	5300809460		Valve - Water Inlet		Appelez-nous	-
19	5300807564		Base Angle		Appelez-nous	-
20	3018149		Support Channel		Appelez-nous	-
21	3018150		Rear Brace		Appelez-nous	-
22	3018151		Cover - Box		Appelez-nous	-
23	3018152		Bracket-box		Appelez-nous	-
24	3018153		Hinge		Appelez-nous	-
25	5303208543		Wire Barrier		Appelez-nous	-
26	809711		Retainer-insulation		Appelez-nous	-
27	5300808438		Panel - Side Lh		Appelez-nous	-
28	5300808437		Panel - Side Rh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
