SELECT A DIAGRAM

02 - Control Panel


03 - Door Parts


04 - Body Parts


05 - Body Parts

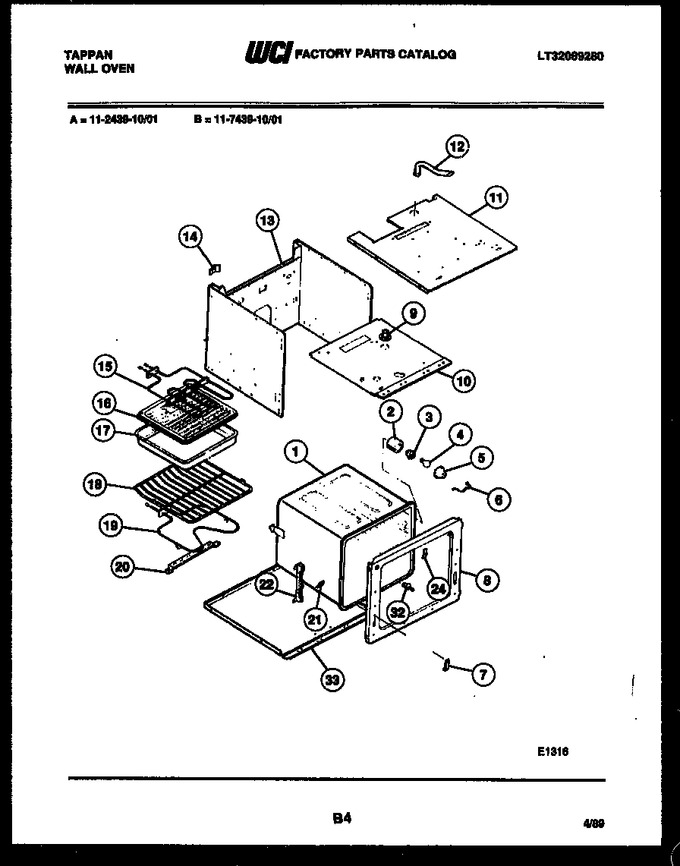

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3202287		Liner-oven		Appelez-nous	-
2	3016243		Tube - Oven Light		Appelez-nous	-
3	08011085		Receptacle		Appelez-nous	-
4	3013071		Bulb		Appelez-nous	-
5	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 15.61
6	3016244		Retainer-lens		Appelez-nous	-
7	3019063		Retainer - Door (2)		Appelez-nous	-
8	3202083		Frame-front		Appelez-nous	-
9	3051742		Vent Tube Assembly		Appelez-nous	-
10	3202461		Shield-top		Appelez-nous	-
11	3203747		Wrapper-top		Appelez-nous	-
12	3016301		Duct - Vent Tube		Appelez-nous	-
13	3203861		Wrapper		Appelez-nous	-
14	3016281		Spring, Oven (2)		Appelez-nous	-
15	3016247		Element-broil		Appelez-nous	-
16	3019066		Insert-broiler Pan		Appelez-nous	-
17	3018808		Pan-broiler		Appelez-nous	-
18	3016315		Rack (2)		Appelez-nous	-
19	318255101		Element, Bake   (Replaces: 3202440)				$ 185.70
20	3016248		Support, Broil Element		Appelez-nous	-
21	3201632		Spacer, Oven (2)		Appelez-nous	-
22	3201631		Hinge Assembly (2)				$ 58.22
24	3202082		Cover Seam		Appelez-nous	-
32	3051531		Switch-oven Light		Appelez-nous	-
33	3203860		Shield-center		Appelez-nous	-
32A	3016323		Insulation-wrap (non-illustrated)		Appelez-nous	-
32B	3016319		Insulation-back (non-illustrated)		Appelez-nous	-
32C	3131060		Clip-capillary (non-illustrated)		Appelez-nous	-
32D	3016313		Button-plug (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
