SELECT A DIAGRAM

01 - Cover

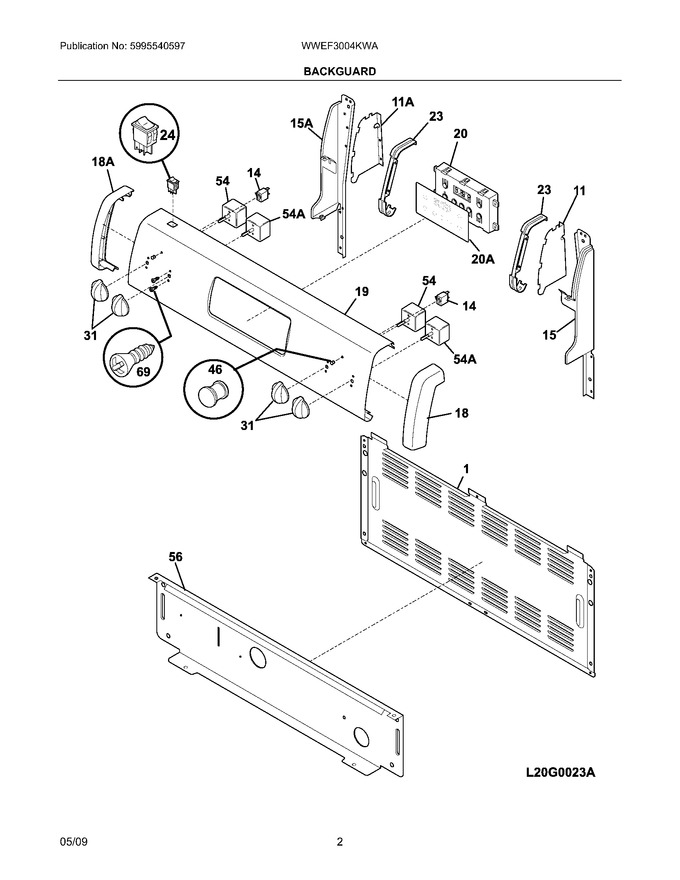

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316239900		Shield,backguard ,rear Wall				$ 93.03
11	316241000		Shield,end Cap ,rh		Appelez-nous	-
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15	316220214		Support,backguard ,white ,rh		Appelez-nous	-
18	316240900		End Cap,white ,rh				$ 49.09
19	316246681		Panel,backguard ,white		Appelez-nous	-
23	316245900		Bracket,clock Mtg		Appelez-nous	-
31	316223030		Knob,control ,white			Immediately	$ 47.78
46	316557300		Lens-light/lamp,indicator ,clear			Immediately	$ 16.77
54	316436001		Switch,infinite ,large Element			Immediately	$ 51.68
56	316234029		Shield,backguard ,white ,inner   (Replaces: 316234012)				$ 87.17
69	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.12
11A	A2563116G		Shield,end Cap ,lh   (Replaces: 316241001)		Appelez-nous	-
15A	316220215		Support,backguard ,white ,lh				$ 86.05
18A	316240901		End Cap,white ,lh				$ 45.62
20A	316220718		Overlay,clock ,white		Appelez-nous	-
F20	5304518660		Clock/timer,electronic ,es100   (Replaces: 316455400)			Immediately	$ 181.92
F24	5304527842		Switch,rocker ,white ,oven Light   (Replaces: 316448701)			Immediately	$ 16.13
F54A	316436000		Switch,infinite ,small Element			Immediately	$ 80.34
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
