SELECT A DIAGRAM

01 - Cover

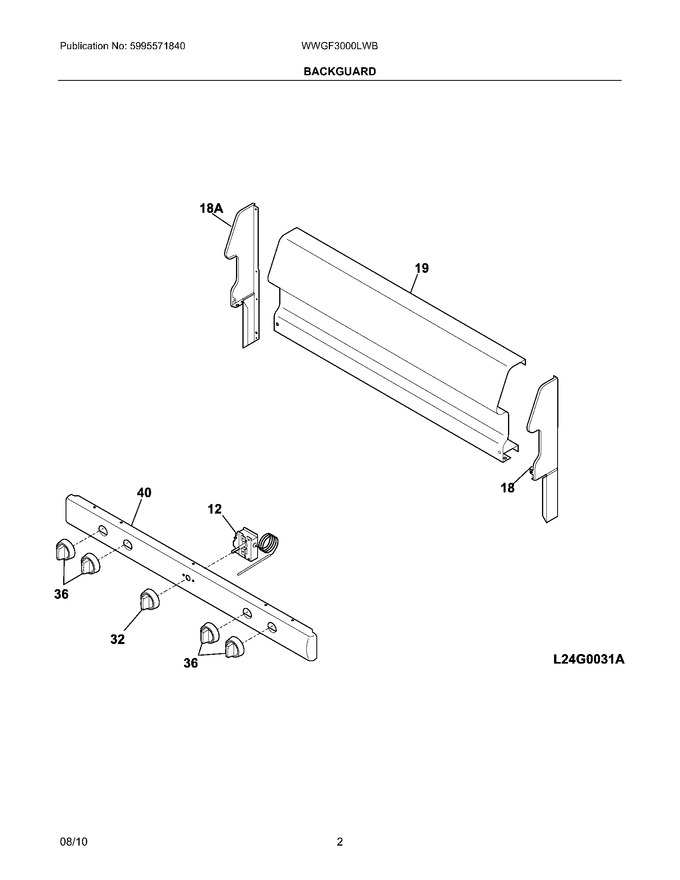

03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	316263404		End Cap,white ,rh		Appelez-nous	-
19	316263201		Panel,control ,white		Appelez-nous	-
32	316102303		Knob,thermostat ,white				$ 61.43
36	316009045		Knob,top Valve ,white ,(4)				$ 42.53
40	316458046		Panel,manifold ,white		Appelez-nous	-
18A	316263405		End Cap,white ,lh		Appelez-nous	-
F12	316032411		Thermostat			Immediately	$ 165.14
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
NI	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.12
NI	316097602		Insulator		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
