SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door

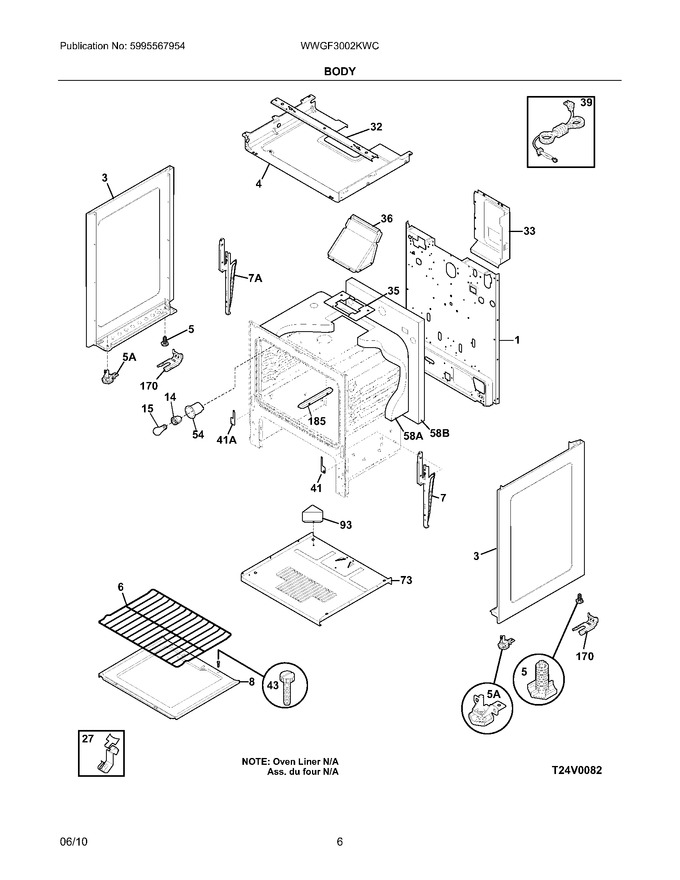

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316029419		Panel,main Back		Appelez-nous	-
3	316400142		Panel,bodyside ,white ,rh   (Replaces: 316400116)				$ 140.85
3	316400143		Panel,bodyside ,white ,lh   (Replaces: 316400117)				$ 140.85
4	316067211		Burner Box		Appelez-nous	-
5	316272900		Screw,leveling ,plastic ,rear ,(2)			Immediately	$ 27.50
6	316067902		Rack,oven ,(2)			Immediately	$ 103.10
7	316566202		Hinge,oven Door ,rh				$ 73.96
8	316495901		Panel,,oven Bottom				$ 134.40
14	316116400		Receptacle,oven Light			Immediately	$ 56.10
15	316538904		Lamp,oven Light   (Replaces: 316538901)			Immediately	$ 20.48
27	5303284616		Clip,thermo Bulb Mtg				$ 9.86
32	316107504		Channel,burner Support		Appelez-nous	-
33	316055600		Shield-spark Module,galv Steel		Appelez-nous	-
35	316542102		Gasket-flue   (Replaces: 316542100)				$ 12.13
36	316204401		Flue,black		Appelez-nous	-
39	5304534377		Cord-electric Power   (Replaces: 3202006)				$ 26.85
41	316233400		Cover,hinge Cutout ,rh				$ 67.99
43	316282700		Screw,8-18 X 1.438 ,oven Bottom   (Replaces: 3131732)				$ 9.93
54	5303271606		Housing,oven Light		Appelez-nous	-
73	316109902		Base,low Broil				$ 131.25
93	316110000		Shield,ignitor ,metal		Appelez-nous	-
170	316112005		Anti Tip Kit,assembly   (Replaces: 316112004)			Immediately	$ 18.91
185	316112900		Shield,thermo Bulb		Appelez-nous	-
41A	316233500		Cover-hinge,cutout ,lh				$ 16.96
58A	3017142		Insulation, Oven Wrapper				$ 193.50
58B	316054202		Insulation, 1`` ,oven Back				$ 76.59
5A	5304509869		Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg   (Replaces: 316498900)			Immediately	$ 15.08
7A	316566203		Hinge,oven Door ,lh				$ 67.62
F170	316541700		Template,anti-tip		Appelez-nous	-
F170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 12.89
F170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
NI	316435800		Plate,weight ,(3)		Appelez-nous	-
NI	316539800		Retainer,wire				$ 14.41
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303289684		Fastener,tanden Wire ,(2)		Appelez-nous	-
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	316064600		Support,oven Bottom				$ 18.95
NI	3131737		Washer-black				$ 5.59
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	316418901		Screw,trilobe ,10-32 X 5/16`` ,black				$ 14.18
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
NI	316246400		Plug,button ,oven Probe		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
