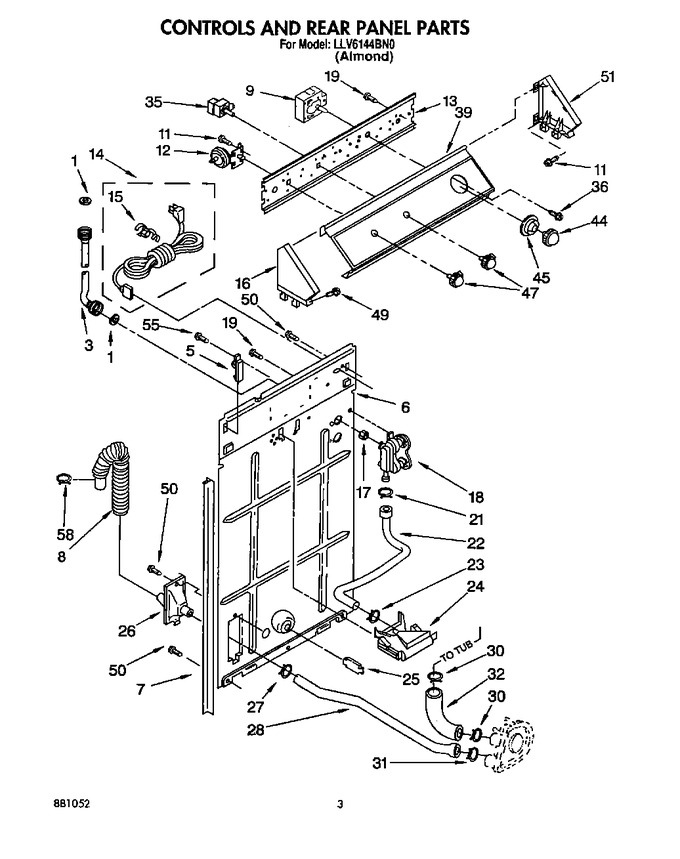

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) (1-1/16 X 5/8) (Replaces: 16123) |
|
$ 6.93 | |||||
| 3 | WP89503 | Hose, Water Inlet (2) (Replaces: 3354858) |
|
Immediately | $ 21.68 | ||||
| 5 | 387402 | Hinge, Console (2) |
|
$ 5.84 | |||||
| 6 | 3357978 | Panel, Rear |
|
- | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 23.63 | |||||
| 8 | 285666 | Hose, Drain (10 Ft.) (not Included) (Replaces: 661577) |
|
Immediately | $ 56.11 | ||||
| 8 | 285664 | Hose, Drain (5 1/2 Ft.) (Replaces: 661575) |
|
Immediately | $ 33.20 | ||||
| 8 | 285702 | Extension, Drain Hose (21 Inches) (not Included) (Replaces: 3357090) |
|
Immediately | $ 54.81 | ||||
| 9 | 3361185 | Timer, Control (60 Hz.) (motor Not A Service Part) |
|
- | |||||
| 11 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 12 | 3356466 | Switch, Water Level |
|
$ 78.59 | |||||
| 13 | WP3948608 | Bracket, Control (Replaces: 3360936) |
|
$ 104.57 | |||||
| 14 | 3360514 | Cord, Power |
|
- | |||||
| 15 | W11733005 | Strain Relief, Power Cord (Replaces: 63848) |
|
$ 11.64 | |||||
| 16 | 3358532 | Cap, End (l.h.) |
|
- | |||||
| 17 | WP96160 | Screen, Filter (2) (Replaces: 96160) |
|
$ 10.54 | |||||
| 18 | 285805 | Valve, Water Mixing (Replaces: 3360392) |
|
Immediately | $ 49.57 | ||||
| 19 | WP3351614 | Screw, 10-24 X 3/8 (2) (Replaces: 90864) |
|
Immediately | $ 6.26 | ||||
| 21 | WP596669 | (alt.) (Replaces: 353367) |
|
Immediately | $ 7.56 | ||||
| 21 | WP596669 | (alt.) (Replaces: 272846) |
|
Immediately | $ 7.56 | ||||
| 21 | WP596669 | Clamp, Hose (Replaces: 660632) |
|
Immediately | $ 7.56 | ||||
| 22 | WP3357328 | Hose, Vacuum Break (Replaces: 3357328) |
|
Immediately | $ 22.30 | ||||
| 23 | WP596669 | Clamp, Hose (Replaces: 371503) |
|
Immediately | $ 7.56 | ||||
| 24 | WP3347034 | Break, Vacuum (Replaces: 3347034) |
|
Immediately | $ 67.75 | ||||
| 25 | WP8519200 | Support, Rear Panel (Replaces: 63290) |
|
Immediately | $ 17.01 | ||||
| 26 | WPW10358149 | Connector, Drain Hose (Replaces: 3355497) |
|
Immediately | $ 43.34 | ||||
| 27 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 28 | WP3348552 | Hose, Pump To Drain Connector (Replaces: 3359818) |
|
$ 76.37 | |||||
| 30 | WP371502 | Clamp, Hose (Replaces: 371502) |
|
$ 10.38 | |||||
| 31 | WP285655 | (alt.) (Replaces: 353097) |
|
Immediately | $ 7.55 | ||||
| 31 | WP285655 | Clamp, Hose (Replaces: 660628) |
|
Immediately | $ 7.55 | ||||
| 31 | WP285655 | (alt.) (Replaces: 272858) |
|
Immediately | $ 7.55 | ||||
| 31 | WP285655 | (alt.) (Replaces: 370447) |
|
Immediately | $ 7.55 | ||||
| 32 | 285871 | Hose, Pump To Tub (Replaces: 62731) |
|
Immediately | $ 24.01 | ||||
| 35 | 3361220 | Switch, Water Temperature |
|
- | |||||
| 36 | WP356418 | Screw, Timer Mounting (10-32 X 1) (2) (Replaces: 96435) |
|
$ 7.13 | |||||
| 39 | 3359233 | Panel, Console |
|
- | |||||
| 44 | WP3364293 | Knob, Timer (Replaces: 3358419) |
|
Immediately | $ 53.51 | ||||
| 45 | 280193 | Dial, Timer (Replaces: 3358446) |
|
$ 51.36 | |||||
| 47 | WP8538957 | Knob, Control (Replaces: 3358434) |
|
$ 50.17 | |||||
| 49 | WP388326 | Screw, 8-18 (panel To Top) (Replaces: 3353145) |
|
$ 7.30 | |||||
| 50 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.04 | |||||
| 51 | 3358517 | Cap, End (r.h.) |
|
- | |||||
| 55 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 58 | WP3357331 | Clamp, Drain Hose (almond) (Replaces: 3357331) |
|
$ 6.80 |
