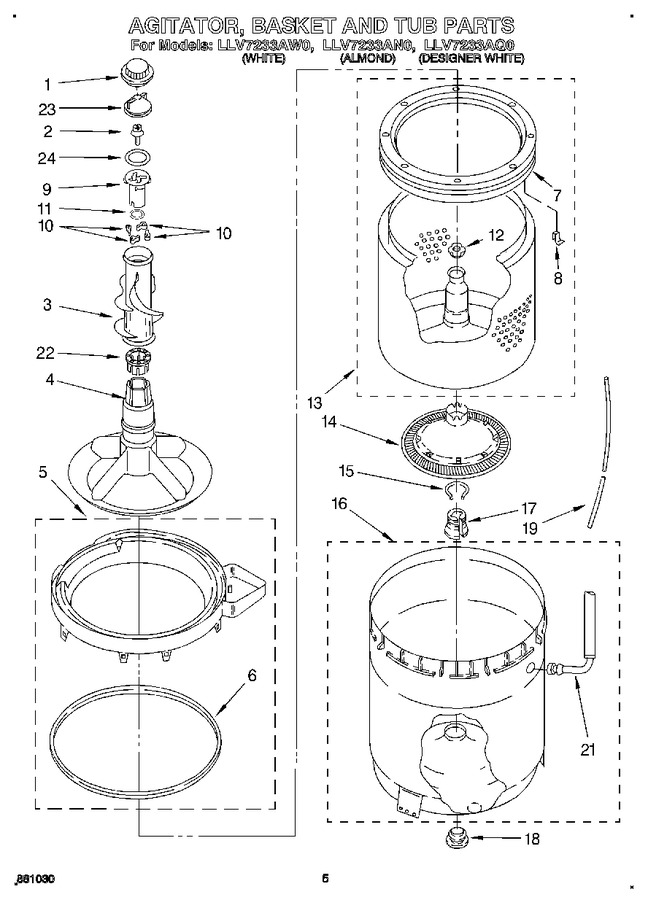

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3355758 | Cap, Agitator (Replaces: 3355758) |
|
Immediately | $ 8.10 | ||||
| 2 | WP358237 | Screw & Washer (5-16-24 X 1) (Replaces: 358237) |
|
Immediately | $ 7.97 | ||||
| 3 | WP3349019 | Clothes Mover (Replaces: 3349019) |
|
$ 194.80 | |||||
| 4 | WP3350830 | Agitator (Replaces: 3350830) |
|
$ 159.84 | |||||
| 5 | 3360611 | Tub Ring & Gasket |
|
$ 88.45 | |||||
| 6 | 3359856 | Gasket, Tub Ring |
|
- | |||||
| 7 | WP8519815 | Clip, Balance Ring (8) (Replaces: 387867) |
|
$ 7.51 | |||||
| 8 | 387868 | Balance Ring |
|
- | |||||
| 9 | 285811 | Cam Driven (Replaces: 3351001) |
|
Immediately | $ 29.33 | ||||
| 10 | 80040 | Dog, Agitator Clutch (Replaces: 387091) |
|
Immediately | $ 3.28 | ||||
| 11 | 357574 | Seal, Agitator |
|
$ 5.70 | |||||
| 12 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 8.00 | ||||
| 13 | 387713 | Basket & Balance Ring |
|
- | |||||
| 14 | 285868 | Filter, Plate (includes Illus. 15) (Replaces: 62941) |
|
Immediately | $ 19.51 | ||||
| 15 | 62942 | Lock, Filter |
|
$ 7.59 | |||||
| 16 | 63039 | Tub |
|
- | |||||
| 17 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 24.74 | ||||
| 18 | W10814296 | Gasket, Center Post (Replaces: 383727) |
|
Immediately | $ 8.26 | ||||
| 19 | WP353244 | Hose, Pressure Switch (Replaces: 3347780) |
|
Immediately | $ 53.94 | ||||
| 21 | 3358198 | Hose, Bleach |
|
- | |||||
| 22 | 285587 | Spacer, Thrust (Replaces: 3350389) |
|
Immediately | $ 3.98 | ||||
| 23 | WPW10074580 | Cap, Barrier (Replaces: 3347290) |
|
Immediately | $ 11.16 | ||||
| 24 | WPW10072840 | Seal-inner Cap (Replaces: 3348855) |
|
Immediately | $ 7.85 |
