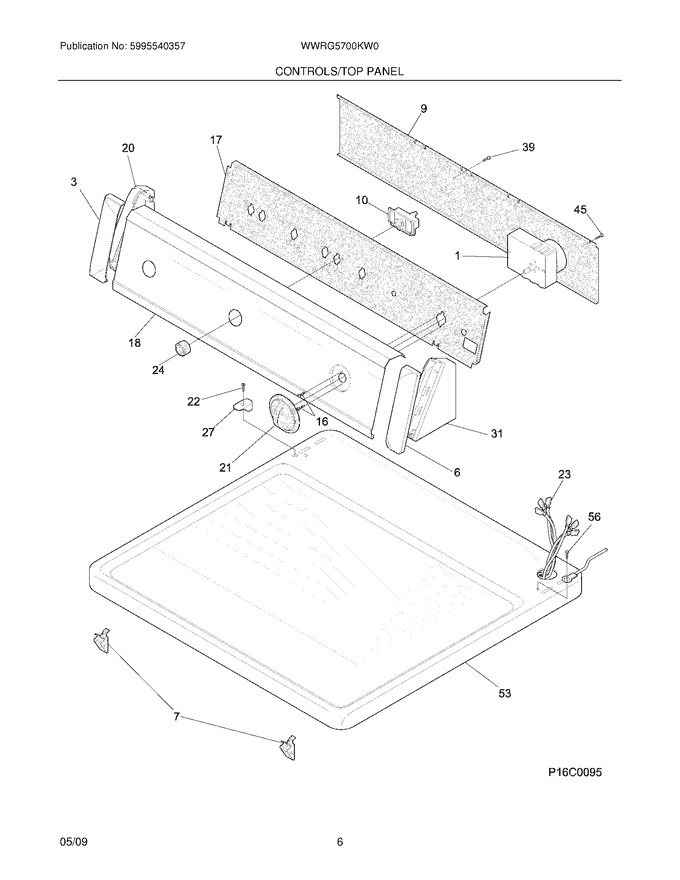

07 - Controls/top Panel


09 - Motor


11 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	131122611		Cover-end Cap, White, Lh				$ 42.21
6	131122601		Cover-end Cap, White, Rh				$ 47.20
7	3205821		Clip,top-to-front			Immediately	$ 35.44
9	134088700		Panel,console Back		Appelez-nous	-
16	134034300		Screw,pan Hd Phillips ,8-18b X 0.250		Appelez-nous	-
17	134487900		Bracket,control Mtg.		Appelez-nous	-
18	137152700		Panel,control Console ,white		Appelez-nous	-
20	131122714		End Cap,white ,lh				$ 32.32
21	134011703		Knob,timer ,white/gray			Immediately	$ 58.56
22	131266330		Screw,8-18 X 1.250				$ 7.63
23	134004700		Wiring Harness		Appelez-nous	-
24	131111501		Button,start Switch ,white ,push Type				$ 13.79
27	131197000		Clip-console Mtg				$ 13.62
31	131122701		End Cap, White, Rh				$ 53.29
39	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
45	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
53	134086802		Panel,dryer Top ,white ,console Mtg				$ 203.75
56	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 10.46
F1	5303297139		Timer-dryer				$ 387.45
F10	131469000		Switch-push/start			Immediately	$ 55.81
FNI	134101400		Terminal Block,main			Immediately	$ 55.99
