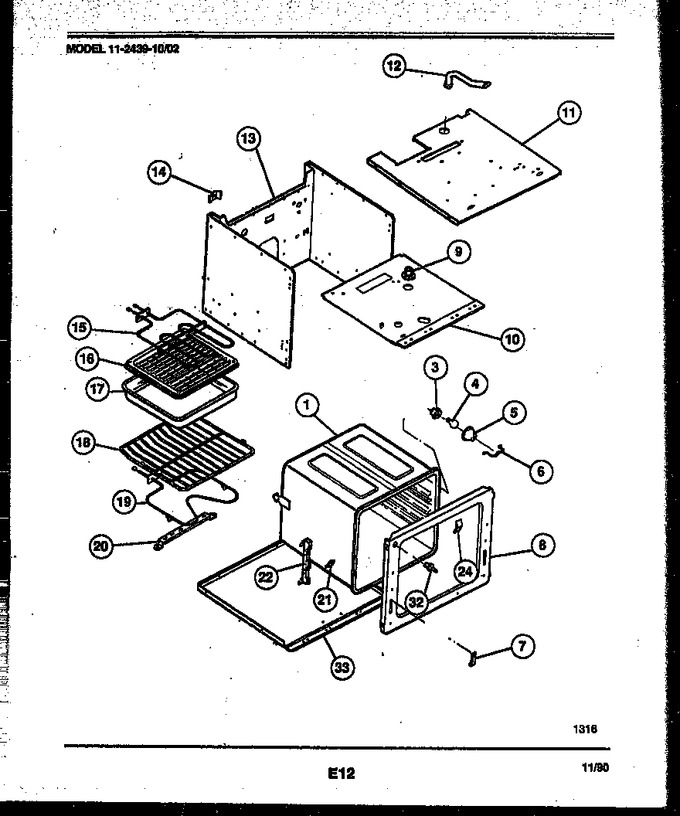

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202287 | Liner-oven |
|
- | |||||
| 3 | 316116400 | Receptacle (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 4 | 40A15 | Bulb (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 5 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 6 | 3204483 | Retainer-lens |
|
- | |||||
| 7 | 3019063 | Retainer - Door (2) |
|
- | |||||
| 8 | 3202463 | Frame-front |
|
- | |||||
| 9 | 5303206498 | Tube-oven Vent |
|
- | |||||
| 10 | 3202461 | Shield-top |
|
- | |||||
| 11 | 3202462 | Wrapper-top |
|
- | |||||
| 12 | 3016301 | Duct - Vent Tube |
|
- | |||||
| 13 | 3203861 | Wrapper |
|
- | |||||
| 14 | 3016281 | Spring, Oven (2) |
|
- | |||||
| 15 | 5303016247 | Element, Broil |
|
$ 223.97 | |||||
| 16 | 3205234 | Insert, Broiler Pan |
|
- | |||||
| 17 | 3205539 | Pan, Broiler |
|
- | |||||
| 18 | 5303016315 | Rack (2) |
|
- | |||||
| 19 | 318255101 | Element, Bake (Replaces: 3202440) |
|
$ 185.70 | |||||
| 20 | 3016248 | Support, Broil Element |
|
- | |||||
| 21 | 3201632 | Spacer, Oven (2) |
|
- | |||||
| 22 | 3201631 | Hinge Assembly (2) |
|
$ 58.22 | |||||
| 24 | 3202082 | Cover Seam |
|
- | |||||
| 32 | 5301312411 | Switch-oven Light |
|
- | |||||
| 33 | 3203860 | Shield-center |
|
- | |||||
| *41506 | 191S018F247 | Wiring Diagram (not For Purchase) |
|
- | |||||
| 32A | 3016323 | Insulation-wrap (non-illustrated) |
|
- | |||||
| 32B | 3016319 | Insulation-back (non-illustrated) |
|
- | |||||
| 32C | 5300009126 | Clip |
|
- | |||||
| 32D | 3016313 | Button-plug (non-illustrated) |
|
- |
