SELECT A DIAGRAM

01 - Top And Cabinet, Lit/optional


02 - Controls And Rear Panel


03 - Agitator, Basket And Tub


04 - Miscellaneous

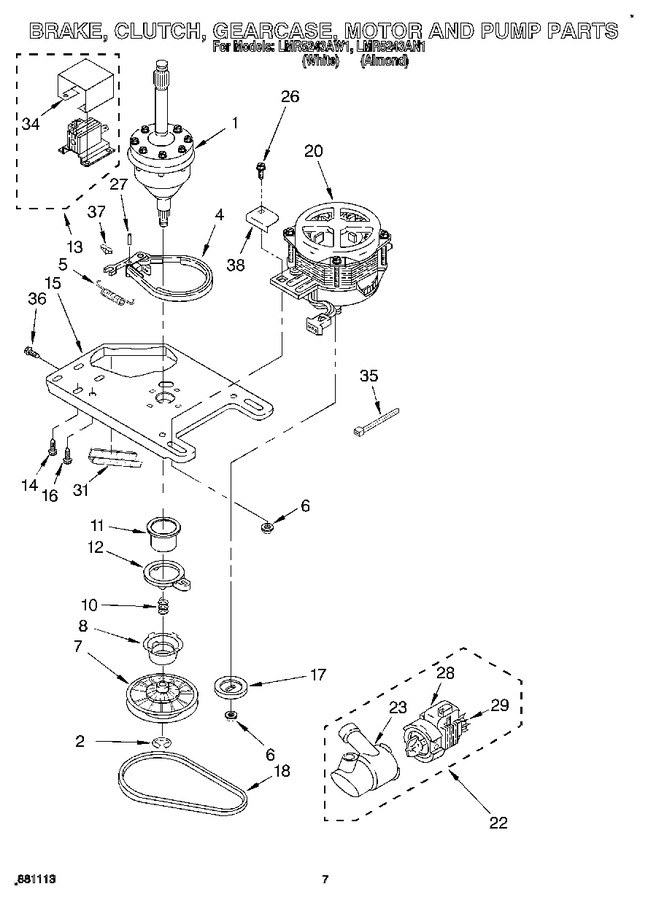

05 - Brake, Clutch, Gearcase, Motor & Pump


06 - Suspension


07 - Wiring Harness


08 - Water System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3934672		Gearcase Assembly		Appelez-nous	-
2	WP354987		Ring, Snap   (Replaces: 3934678)			Immediately	$ 10.58
4	3428323		Brake Band				$ 20.90
5	3428342		Spring, Brake		Appelez-nous	-
6	90984		Nut, Washer Locking   (Replaces: 3934662)		Appelez-nous	-
7	3428359		Pulley, Splutch				$ 33.87
8	3428378		Cam, Splutch				$ 35.36
10	3934212		Spring, Splutch		Appelez-nous	-
11	3428380		Slider, Splutch		Appelez-nous	-
12	3428379		Cam Ring, Splutch				$ 5.51
13	3934709		Solenoid		Appelez-nous	-
14	3934040		Screw, Solenoid Mtg. (4)		Appelez-nous	-
15	3430205		Plate, Motor Mount		Appelez-nous	-
16	3429405		Bolt, Motor Plate (4)		Appelez-nous	-
17	3428683		Pulley, Motor		Appelez-nous	-
18	3934700		Drive Belt				$ 39.07
20	3934201		Motor, Main Drive (includes Items 17, & 6)		Appelez-nous	-
22	3430119		Pump (complete)		Appelez-nous	-
23	3430120		Housing, Pump		Appelez-nous	-
26	3934663		Bolt, Motor Mounting (2)		Appelez-nous	-
27	3934183		Pin, Brake Band		Appelez-nous	-
28	3430089		Pump		Appelez-nous	-
29	3429939		Blade, Fan		Appelez-nous	-
31	3429705		Protector, Edge		Appelez-nous	-
34	3934824		Solenoid Shield, Top		Appelez-nous	-
35	WP2205813		Tie, Wire   (Replaces: 3429563)				$ 6.95
36	WP3351614		Screw, Ground   (Replaces: 3428971)			Immediately	$ 6.26
37	3429416		Lock, Solenoid		Appelez-nous	-
38	3430197		Shield, Motor Connector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
