Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3430076 Suspension Rod, Front (2) Appelez-nous -
2 3430077 Suspension Rod, Rear (2) Appelez-nous -
3 3428508 Strap, Snubber Appelez-nous -
4 3428423 Ball, Upper Suspension (4) Appelez-nous -
5 3429938 Capacitor Special Order $ 16.70

6 3428343 Bracket, Capacitor Appelez-nous -
7 3934040 Screw, Bracket Appelez-nous -
10 3428033 Screw (4) Appelez-nous -
11 3934460 Support, Tub Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

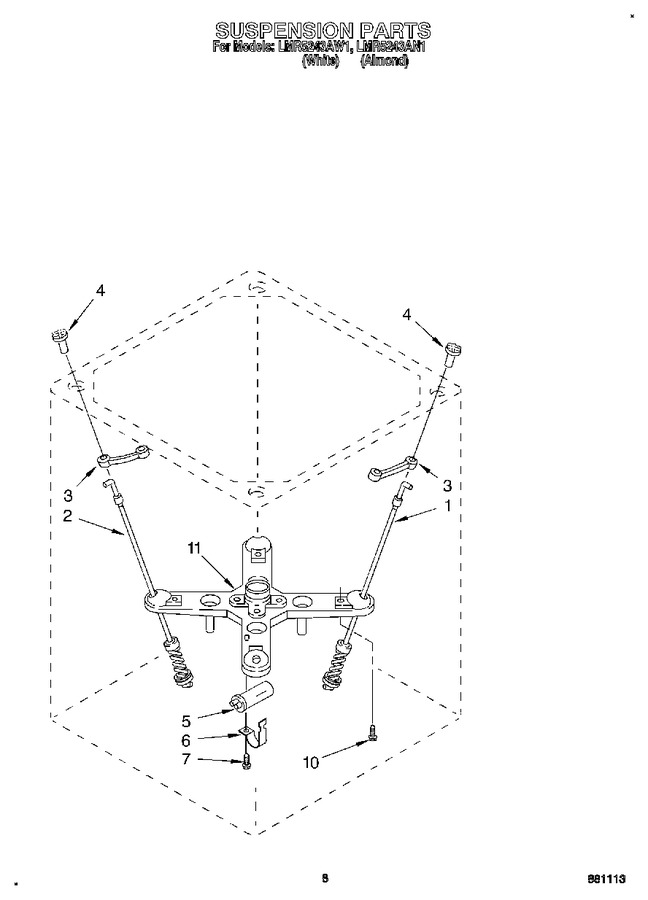

Diagram for LMR5243AW1
