01 - Rear And Side Panel


02 - Console And Front Panel

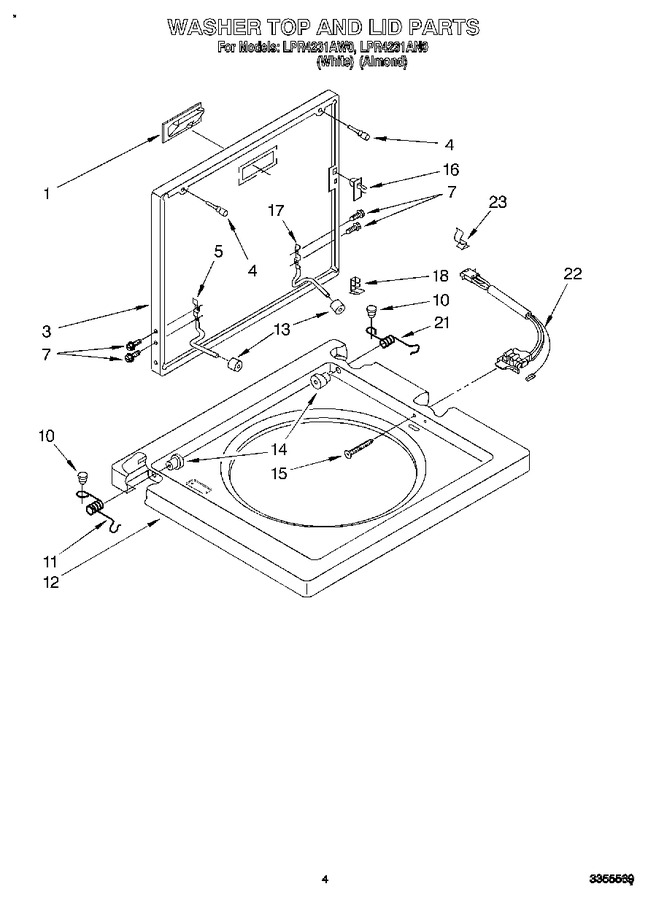

03 - Washer Top And Lid


04 - Wiring Harness


05 - Agitator, Basket And Tub


06 - Machine Base


07 - Brake, Clutch, Gearcase, Motor And Pump


08 - Miscellaneous, Lit/optional


09 - Gearcase


10 - Brake And Drive Tube


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	379889		Handle, Lid (white)				$ 33.92
1	379885		Handle, Lid (almond)		Appelez-nous	-
3	3348019		Lid (almond Model)		Appelez-nous	-
3	3348018		Lid (white Model)		Appelez-nous	-
4	80011		Bumper, Lid (2)   (Replaces: 384475)			Immediately	$ 8.98
5	384458		Hinge, Lid (l.h.)				$ 76.11
7	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: 3351355)			Immediately	$ 6.47
10	54690		Plug, Button (2)		Appelez-nous	-
11	384463		Spring, Lid (l.h.) (includes Illus. 10)		Appelez-nous	-
12	WP384693		Top (white Model)   (Replaces: 384209)				$ 274.65
12	384210		Top (almond Model)		Appelez-nous	-
13	19119		Bumper, Lid Hinge (2)				$ 5.75
14	WP21258		Bearing, Lid Hinge (2)   (Replaces: 21258)			Immediately	$ 6.87
15	WP3356311		Screw & Washer, Lid Switch Shield (2)   (Replaces: 3356311)				$ 6.98
16	WP358684		Strike, Lid Switch   (Replaces: 358684)			Immediately	$ 6.90
17	384459		Hinge, Lid (r.h.)				$ 76.63
18	W10113937		Clip, Grounding   (Replaces: 357572)				$ 9.75
21	384462		Spring, Lid (r.h.) (includes Illus. 10)		Appelez-nous	-
22	3355805		Switch, Lid				$ 54.98
23	WP90016		Clip, Harness Routing   (Replaces: 90016)				$ 10.19
