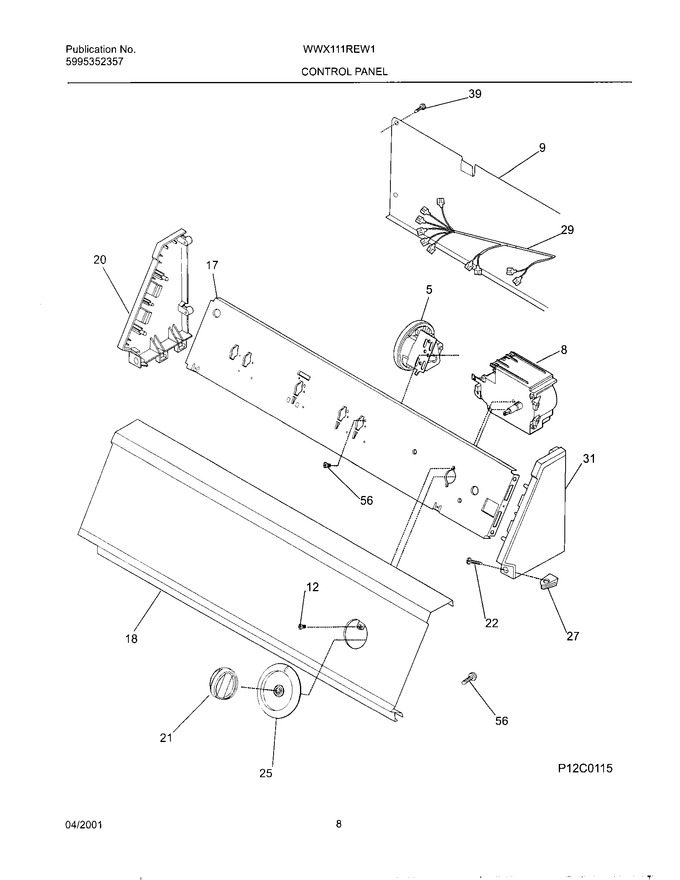

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	131302500		Switch-pressure				$ 302.25
8	131985900		Timer Elec A-mallory Delta		Appelez-nous	-
9	5303205838		Backsheet-console		Appelez-nous	-
12	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
17	131580006		Bracket-control		Appelez-nous	-
18	134003100		Trimplate-wwx111rew		Appelez-nous	-
20	5303291344		End Cap, Black, Lh				$ 59.59
21	131978300		Knob-tmr Blk Mdln Dlta Mf0,mf2		Appelez-nous	-
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	131978202		Pntr-blk/gray Midln Delta Mf2		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
29	131980700		Harn H Mallory		Appelez-nous	-
31	5303291352		End Cap, Black, Rh				$ 56.49
39	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Drive				$ 10.46
NI	131827800		Bezel-w/west-blk/wht Print		Appelez-nous	-
