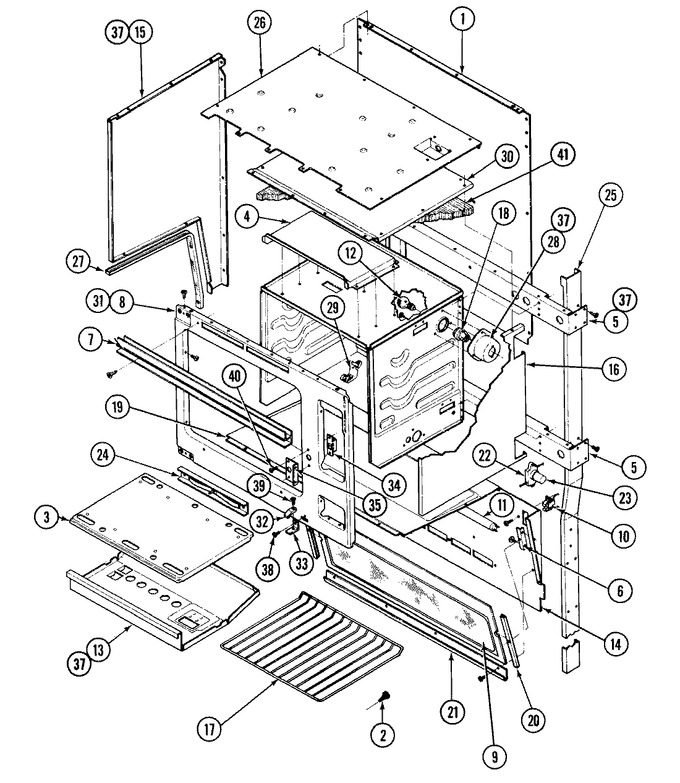

01 - Body
02 - Body-upper
03 - Controls-upper
04 - Door (upper)
05 - Door/drawer
06 - Gas Controls
07 - Oven
08 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F187-16 | Back, Main | 01 |
|
- | ||||
| 2 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 | |||
| 2 | 8010P069-60 | Spacer, Hinge (main Top) | 01 |
|
$ 8.57 | ||||
| 3 | 5720M001-17 | Bottom, Oven | 01 |
|
- | ||||
| 4 | 4006W020-19 | Box, Flue Assy | 01 |
|
- | ||||
| 5 | 3802F090-80 | Brace, Upper Oven | 01 |
|
- | ||||
| 6 | 3801F009-34 | Bracket, Glass Support | 01 |
|
- | ||||
| 6 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 01 |
|
$ 6.98 | ||||
| 7 | 7706P006-60 | Extrusion, Trim | 01 |
|
- | ||||
| 7 | 7706P035-60 | Extrusion, Vent | 01 |
|
- | ||||
| 8 | 2201F064-19 | Frame, Oven Front | 13 |
|
- | ||||
| 9 | 7902P381-60 | Glass, Backsplash | 01 |
|
- | ||||
| 10 | 3801F057-34 | Bracket, Lamp Holder | 01 |
|
- | ||||
| 10 | 7408P006-60 | Receptacle, Lamp | 01 |
|
- | ||||
| 11 | WP95292 | Bulb, Fluorescent Li (Replaces: 7407P037-60) | 01 |
|
Immediately | $ 121.45 | |||
| 11 | 7412P007-60 | Ballast | 01 |
|
- | ||||
| 11 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 12 | 40A15 | Bulb, Oven (Replaces: 7407P095-60) | 01 |
|
Immediately | $ 1.98 | |||
| 13 | 4009F001-45 | Lining, Misc. | 01 |
|
- | ||||
| 14 | 2612F022-32 | Panel, Backsplash | 01 |
|
- | ||||
| 14 | 7201P008-60 | Gasket | 01 |
|
- | ||||
| 14 | 4006W018-19 | Flue Box, Backsplash Panel | 13 |
|
- | ||||
| 15 | 2618F102-74 | Panel, Side (rt-alm) | 01 |
|
- | ||||
| 15 | 2618F103-74 | Panel, Side (lt-alm) | 01 |
|
- | ||||
| 16 | 3804F045-51 | Retainer, Side | 01 |
|
- | ||||
| 17 | 7801P008-60 | Rack | 01 |
|
- | ||||
| 18 | 7408P034-60 | Receptacle, Oven Light | 01 |
|
- | ||||
| 19 | 3804F029-19 | Retainer, Bottom | 01 |
|
- | ||||
| 20 | 7101P075-60 | Screw | 01 |
|
- | ||||
| 20 | 7720P019-60 | Retainer, Glass | 01 |
|
- | ||||
| 21 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 01 |
|
$ 6.98 | ||||
| 21 | 7706P014-60 | Extrusion, Glass Ret | 01 |
|
- | ||||
| 22 | 7408P036-60 | Socket, Starter----na | 01 |
|
- | ||||
| 22 | WP74004005 | Screw (Replaces: 7101P076-60) | 01 |
|
$ 6.95 | ||||
| 23 | 7415P001-60 | Starter | 01 |
|
- | ||||
| 24 | 5720A002-11 | Support, Oven Bottom | 01 |
|
- | ||||
| 24 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 25 | 3818F006-51 | Support, Oven Side | 01 |
|
- | ||||
| 26 | 2007W001-80 | Top, Main Upper | 01 |
|
- | ||||
| 27 | 7720P102-60 | Trim | 01 |
|
- | ||||
| 27 | 7720P101-60 | Trim | 01 |
|
- | ||||
| 27 | 7101P081-60 | Screw | 01 |
|
- | ||||
| 28 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 28 | 4001F016-19 | Housing, Lamp | 01 |
|
- | ||||
| 29 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 01 |
|
Immediately | $ 11.07 | |||
| 30 | 3804F003-51 | Retainer, Top | 01 |
|
- | ||||
| 30 | 3609F002-80 | Guard, Side Ins. | 01 |
|
- | ||||
| 30 | 3804F033-51 | Retainer | 01 |
|
- | ||||
| 31 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 01 |
|
Immediately | $ 6.85 | |||
| 32 | 8016P001-60 | Glide, Door | 01 |
|
- | ||||
| 33 | 8004P002-60 | Support | 01 |
|
- | ||||
| 34 | 8002P006-60 | Catch Female | 01 |
|
- | ||||
| 35 | 3605F001-32 | Plate | 01 |
|
- | ||||
| 36 | WP4159193 | Screw (Replaces: 7101P018-60) | 01 |
|
$ 4.29 | ||||
| 37 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 38 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 01 |
|
$ 6.77 | ||||
| 39 | 7101P019-60 | Screw, Dr Lck Hndl | 01 |
|
- | ||||
| 40 | 7401P015-60 | Block, Terminal | 01 |
|
- | ||||
| 40 | 5180D149-60 | Harness, Upper | 01 |
|
- | ||||
| 40 | WP4159193 | Screw (Replaces: 7101P018-60) | 01 |
|
$ 4.29 | ||||
| 41 | 7002P030-60 | Insulation, Rear | 01 |
|
- | ||||
| 41 | 7002P042-60 | Insulation, Wrap | 01 |
|
- |
