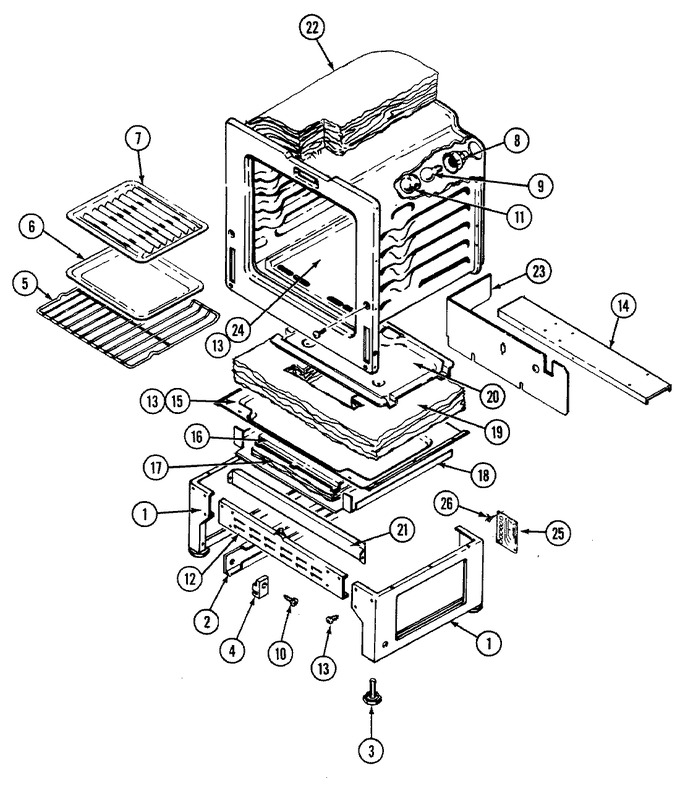

01 - Body
02 - Body-upper
03 - Controls-upper
04 - Door (upper)
05 - Door/drawer
06 - Gas Controls
07 - Oven
08 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4020W011-80 | Pedestal (sides) | 01 |
|
- | ||||
| 2 | 3406F028-51 | Runner, Drawer | 01 |
|
- | ||||
| 3 | 7101P306-60 | Leg, Leveling | 01 |
|
- | ||||
| 4 | 8004P033-60 | Support, Drawer | 01 |
|
- | ||||
| 5 | WPW10282492 | Rack (Replaces: 7801P040-60) | 01 |
|
Immediately | $ 65.15 | |||
| 6 | Y3401F02019 | Pan, Broil | 01 |
|
- | ||||
| 7 | Y3413F01619 | Insert, Broil Pan | 01 |
|
- | ||||
| 8 | WP7407P182-60 | Receptacle, Bulb (Replaces: 7407P088-60) | 01 |
|
Immediately | $ 66.10 | |||
| 9 | 8009 | Bulb-oven (Replaces: 7407P103-60) | 01 |
|
Immediately | $ 16.80 | |||
| 10 | 7101P103-60 | Screw | 01 |
|
- | ||||
| 11 | WP9781049 | Cover, Bulb (Replaces: 7724P047-60) | 01 |
|
Immediately | $ 71.93 | |||
| 12 | 4020F001-80 | Pedestal, Front/rear | 01 |
|
- | ||||
| 13 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 14 | 3807F447-51 | Support, Valve & Regulator | 01 |
|
- | ||||
| 15 | 3804F109-51 | Retainer, Bottom Insulation | 01 |
|
- | ||||
| 16 | 3604F204-51 | Shield, Heat | 01 |
|
- | ||||
| 17 | 7002P140-60 | Insulation, Drawer & Shield | 01 |
|
- | ||||
| 18 | 3604F205-51 | Shield, Drawer | 01 |
|
- | ||||
| 19 | 4804F014-60 | Insulation, Oven Bottom | 01 |
|
- | ||||
| 20 | 3401F024-45 | Pan, Bake Burner | 01 |
|
- | ||||
| 21 | 3601F208-45 | Baffle, Oven Front | 01 |
|
- | ||||
| 22 | 4804F029-60 | Insulation, Wrap | 01 |
|
- | ||||
| 22 | 4804F030-60 | Insulation, Back & Bottom | 01 |
|
- | ||||
| 23 | 4005F429-51 | Cover, Valve | 01 |
|
- | ||||
| 24 | 3601F234-45 | Baffle, Oven Bottom | 01 |
|
- | ||||
| 24 | 3804F010-50 | Retainer | 01 |
|
- | ||||
| 24 | 5504M004-19 | Bottom, Oven Assy. | 01 |
|
- | ||||
| 25 | 7428P010-60 | Relay Board | 01 |
|
- | ||||
| 26 | 3807F439-51 | Support, Relay Board | 01 |
|
- | ||||
| 26 | 5185D277-60 | Harness, Pedestal | 01 |
|
- | ||||
| 26 | 4005F420-80 | Cover, Leveling Leg | 01 |
|
- | ||||
| 26 | 8004P022-60 | Support, Relay Board | 01 |
|
- |
