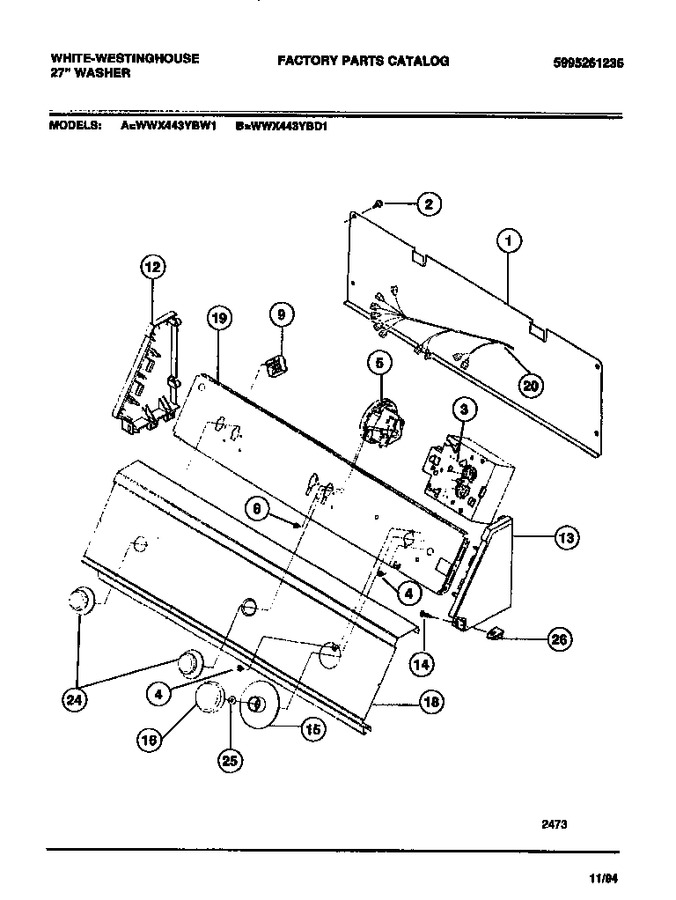

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205898 | Backsheet |
|
- | |||||
| 2 | 131205100 | Screw (4) |
|
Immediately | $ 14.18 | ||||
| 3 | 131238000 | Timer |
|
- | |||||
| 4 | 3161188 | Screw |
|
- | |||||
| 5 | 131047500 | Switch-pressure |
|
$ 186.53 | |||||
| 6 | 131168200 | Screw |
|
Immediately | $ 14.18 | ||||
| 9 | 131081200 | Switch-temperature |
|
- | |||||
| 12 | 5303291344 | End Cap-lh |
|
$ 59.59 | |||||
| 13 | 5303291352 | End Cap-rh |
|
$ 56.49 | |||||
| 14 | 5303289526 | Screw |
|
- | |||||
| 15 | 131118502 | Dial |
|
$ 43.14 | |||||
| 16 | 131118400 | Knob-timer |
|
$ 54.07 | |||||
| 18 | 131241300 | Panel, Control |
|
- | |||||
| 19 | 131157806 | Bracket Controls |
|
- | |||||
| 20 | 131166100 | Harness |
|
- | |||||
| 24 | 131118602 | Knob-rotary |
|
- | |||||
| 25 | 5308015493 | Spacer-timer Shaft |
|
$ 14.36 | |||||
| 26 | 131197000 | Clip |
|
$ 13.62 | |||||
| *95441 | 08001689 | Screw |
|
- | |||||
| *95442 | 08001860 | Screw-grd Cabinet |
|
- |
