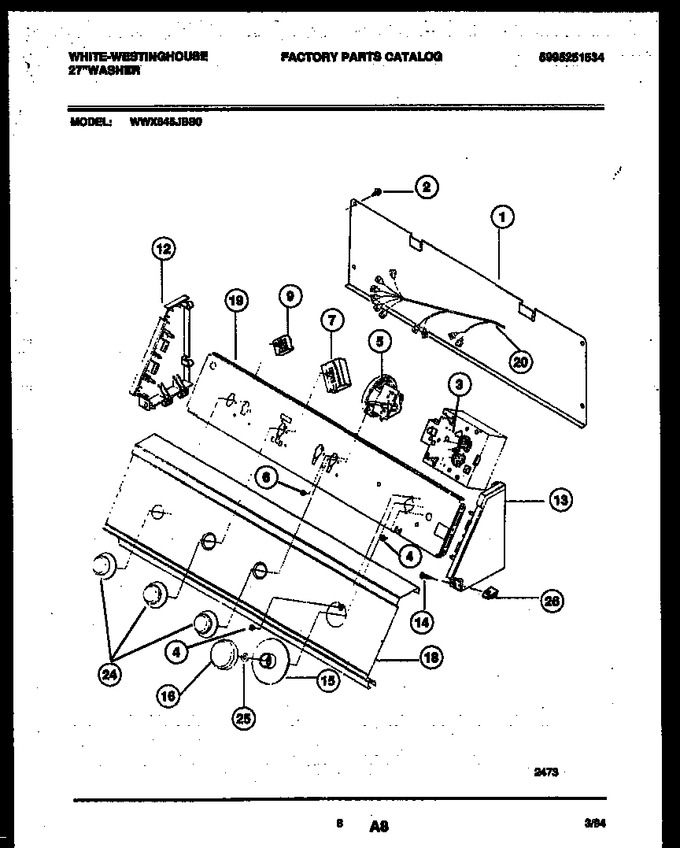

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Cabinet Parts
03 - Tub Detail
04 - Transmission Parts
05 - Console And Control Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205898 | Backsheet |
|
- | |||||
| 2 | 5308006553 | Screw (4) |
|
- | |||||
| 3 | 131238200 | Timer |
|
- | |||||
| 4 | 3161188 | Screw |
|
- | |||||
| 5 | 131047700 | Switch-pressure |
|
- | |||||
| 6 | 131168200 | Screw |
|
Immediately | $ 14.18 | ||||
| 7 | 131120400 | Switch - Speed |
|
- | |||||
| 9 | 131081200 | Switch-temperature |
|
- | |||||
| 12 | 5303291343 | End Cap-l.h. |
|
- | |||||
| 13 | 5303291351 | End Cap-r.h. |
|
- | |||||
| 14 | 5303297854 | Screw |
|
- | |||||
| 15 | 131118503 | Dial |
|
$ 27.54 | |||||
| 16 | 131118401 | Knob - Timer |
|
$ 58.76 | |||||
| 18 | 131241600 | Panel- Control |
|
- | |||||
| 19 | 131157806 | Bracket Controls |
|
- | |||||
| 20 | 131166200 | Harness |
|
- | |||||
| 24 | 131118603 | Knob-rotary (3) |
|
- | |||||
| 25 | 5308015493 | Spacer-timer Shaft |
|
$ 14.36 | |||||
| 26 | 131197000 | Clip |
|
$ 13.62 | |||||
| *89552 | 131243800 | Screw - Grd - Top Panel |
|
$ 10.46 | |||||
| *89552 | 5303281035 | Screw-grd-cabinet |
|
- |
