Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3205898 Backsheet Appelez-nous -
2 131205100 Screw (4) In-Stock Immediately $ 14.18

3 131238200 Timer Appelez-nous -
4 3161188 Screw Appelez-nous -
5 131047700 Switch-pressure Appelez-nous -
6 131168200 Screw In-Stock Immediately $ 14.18

7 131120400 Switch - Speed Appelez-nous -
9 131081200 Switch-temperature Appelez-nous -
12 5303291343 End Cap-l.h. Appelez-nous -
13 5303291351 End Cap-r.h. Appelez-nous -
14 5303297854 Screw Appelez-nous -
15 131118503 Dial Special Order $ 27.54

16 131118401 Knob - Timer Special Order $ 58.76

18 131352000 Panel-control Appelez-nous -
19 131297306 Bracket-controls Appelez-nous -
20 131166200 Harness Appelez-nous -
24 131118603 Knob-rotary Appelez-nous -
25 5308015493 Spacer-timer Shaft Special Order $ 14.36

26 131197000 Clip Special Order $ 13.62

*02121 131243800 Screw - Grd - Top Panel Special Order $ 10.46

*02122 131168200 Screw-grd Cabinet In-Stock Immediately $ 14.18


    View Diagram in Separate Window     Print Icon   Print Part List

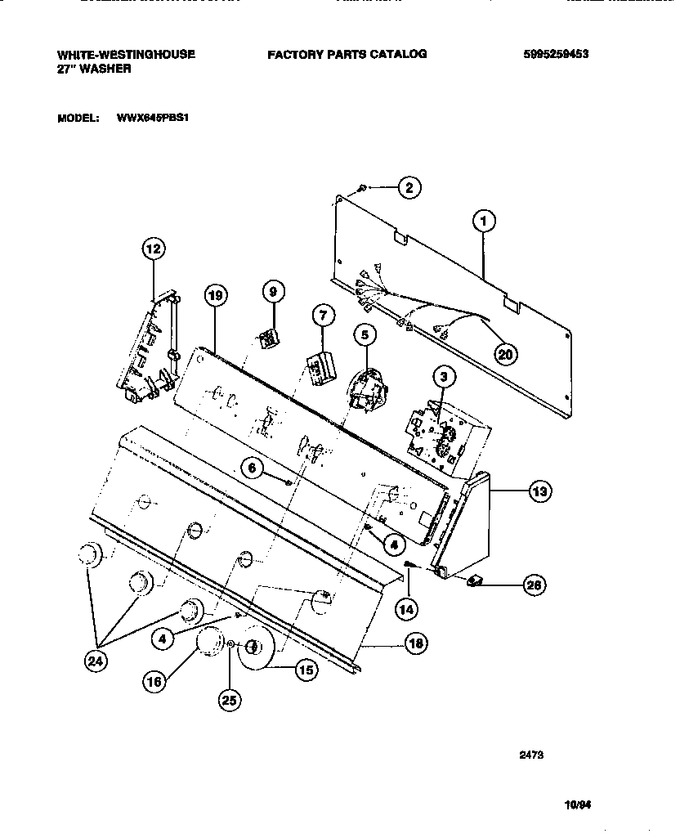

Diagram for WWX645PBS1
