02 - Cabinet, Top Panel, Base
03 - Tubs, Hoses, Motor
04 - Transmission
05 - Console & Controls
SELECT A DIAGRAM
New Model Search:

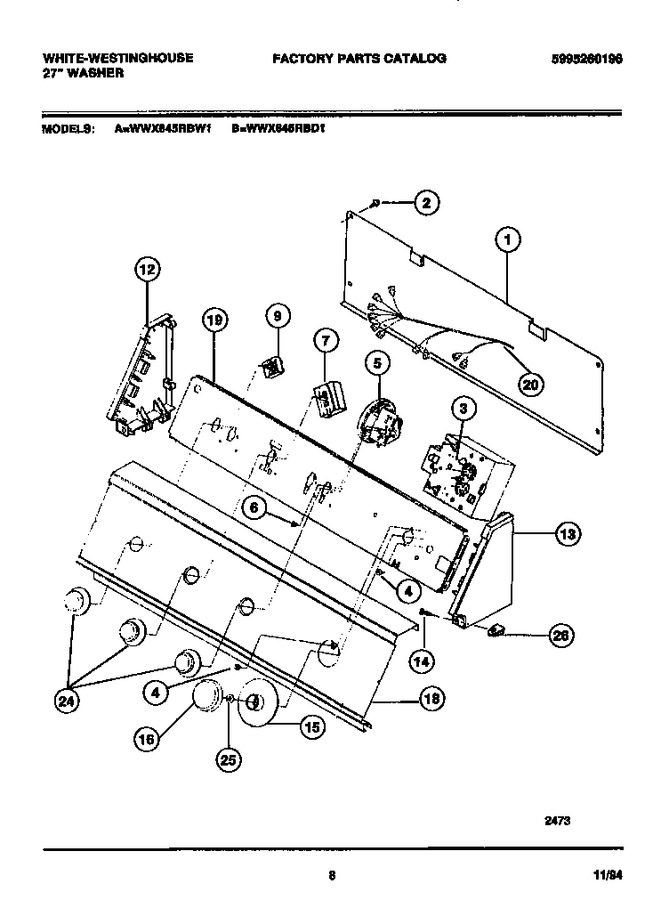

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205898 | Backsheet |
|
- | |||||
| 2 | 131205100 | Screw (4) |
|
Immediately | $ 14.18 | ||||
| 3 | 131238200 | Timer |
|
- | |||||
| 4 | 3161188 | Screw |
|
- | |||||
| 5 | 131047700 | Switch-pressure |
|
- | |||||
| 6 | 131168200 | Screw |
|
Immediately | $ 14.18 | ||||
| 7 | 131120400 | Switch - Speed |
|
- | |||||
| 9 | 31081200 | Switch-temperature |
|
- | |||||
| 12 | 5303291344 | End Cap-lh |
|
$ 59.59 | |||||
| 13 | 5303291352 | End Cap-rh |
|
$ 56.49 | |||||
| 14 | 5303289526 | Screw |
|
- | |||||
| 15 | 131118502 | Dial |
|
$ 43.14 | |||||
| 16 | 131118400 | Knob-timer |
|
$ 54.07 | |||||
| 18 | 131240700 | Panel-control |
|
- | |||||
| 19 | 131157806 | Bracket Controls |
|
- | |||||
| 20 | 131166200 | Harness |
|
- | |||||
| 24 | 131118602 | Knob-rotary |
|
- | |||||
| 25 | 5308015493 | Spacer-timer Shaft |
|
$ 14.36 | |||||
| 26 | 131197000 | Clip |
|
$ 13.62 | |||||
| *18081 | 5303281035 | Screw-grd-cabinet (non-illustrated) |
|
- | |||||
| *18082 | 131243800 | Screw-grd Top Panel (non-illustrated) |
|
$ 10.46 |
