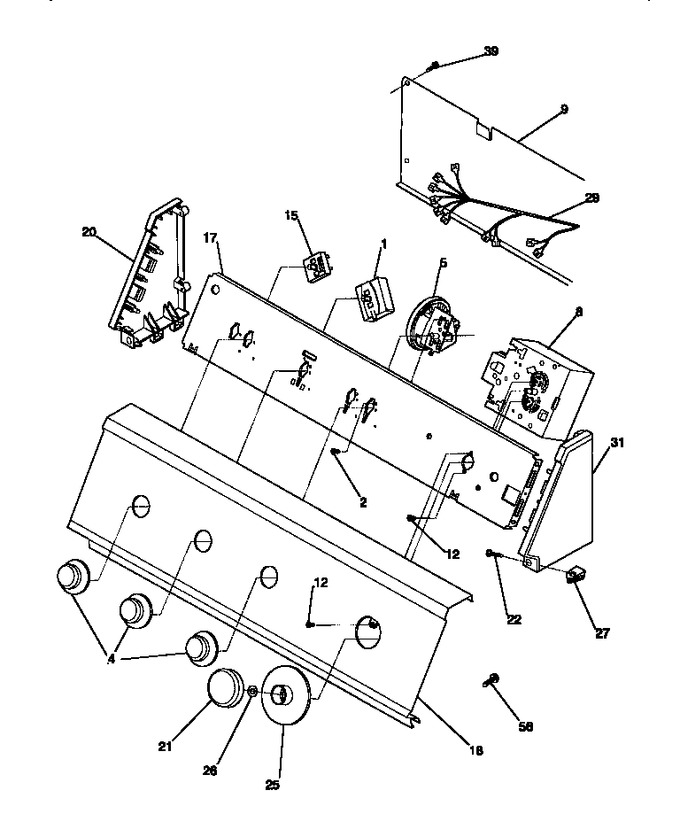

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Cabinet/top
03 - Motor/tub
04 - Transmission
05 - Control Panel
06 - Wiring Diagram
07 - Wiring Diagram
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131120400 | Switch - Speed |
|
- | |||||
| 2 | 131168200 | Screw, Pph B St/z, 8-18 X .31 |
|
Immediately | $ 14.18 | ||||
| 4 | 131118603 | Knob-rotary, White/gray, (3) |
|
- | |||||
| 5 | 131395500 | Switch-pressure |
|
$ 178.11 | |||||
| 8 | 131360500 | Timer-washer |
|
- | |||||
| 9 | 5303205838 | Backsheet-console |
|
- | |||||
| 12 | 3161188 | Screw-timer, Pth St, 8-32nc-2a X .25 |
|
- | |||||
| 15 | 131081200 | Switch-temperature |
|
- | |||||
| 17 | 131297306 | Bracket-controls |
|
- | |||||
| 18 | 131425600 | Panel-control, White |
|
- | |||||
| 20 | 5303291343 | End Cap-lh, White |
|
- | |||||
| 21 | 131118401 | Knob-timer, White |
|
$ 58.76 | |||||
| 22 | 131266300 | Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black |
|
- | |||||
| 25 | 131118503 | Dial, White/gray |
|
$ 27.54 | |||||
| 26 | 5308015493 | Spacer-timer Shaft |
|
$ 14.36 | |||||
| 27 | 131197000 | Clip-control Panel |
|
$ 13.62 | |||||
| 29 | 131341500 | Harness-wiring, Washer |
|
- | |||||
| 31 | 5303291351 | End Cap-rh, White |
|
- | |||||
| 39 | 131205100 | Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive |
|
Immediately | $ 14.18 | ||||
| 56 | 131243800 | Screw, Pan Hd Locking, 8-32ca X 0.375, Cr/sq Drive |
|
$ 10.46 |
