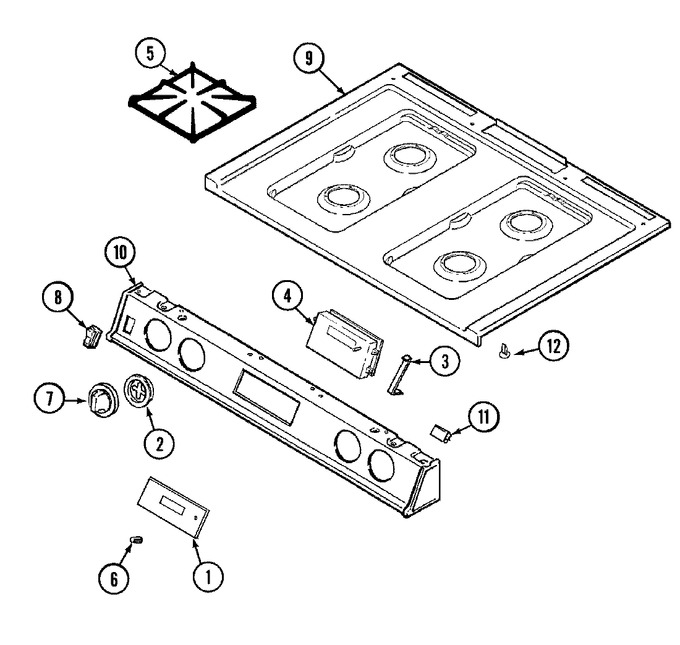

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Body (upr)
03 - Controls (upr)
04 - Door (upr)
05 - Door/drawer
06 - Gas Controls
07 - Oven
08 - Oven (upr)
09 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7403P331-60 | Switch, Membrane (blk) | 10 |
|
$ 182.05 | ||||
| 2 | 7740P058-60 | Bezel, Knob (blk) | 10 |
|
$ 24.44 | ||||
| 3 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 3 | 3801F222-45 | Bracket, Clock | 10 |
|
- | ||||
| 4 | 7601P206-60 | Clock, Electronic | 10 |
|
$ 286.90 | ||||
| 5 | 2003W027-00 | Grate (blk) | 10 |
|
- | ||||
| 6 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P431-60) | 10 |
|
$ 12.13 | ||||
| 7 | 7214P041-60 | Sleeve, Wire Protector | 10 |
|
- | ||||
| 7 | WP74003781 | Knob, Valve (blk) (Replaces: 7733P084-60) | 10 |
|
$ 15.89 | ||||
| 8 | 7403P067-60 | Switch, Rocker (blk) | 10 |
|
$ 91.35 | ||||
| 9 | 2001F117-81 | Top, Main (wht) | 10 |
|
- | ||||
| 10 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 7103P120-60 | Nut, Speed | 10 |
|
- | ||||
| 10 | 7712P150-60 | Panel, Mainfold | 10 |
|
- | ||||
| 11 | 7112P087-60 | Clip, Top Locking | 10 |
|
- | ||||
| 12 | 8016P014-60 | Glide, Main Top | 10 |
|
- | ||||
| 13 | 5195D110-60 | Harness, Burner Box | 10 |
|
- | ||||
| 13 | 5125A312-60 | Harness, Loose/burner Box | 10 |
|
- | ||||
| 13 | 5170P138-60 | Harness, Sensor/lock | 10 |
|
- | ||||
| 13 | 5170P184-60 | Harness, Relay | 10 |
|
- | ||||
| 14 | 8112P106-60 | Manual, Use & Care-insert | 10 |
|
- | ||||
| 14 | 8113P026-60 | Insert, Instr Sheet (clock) | 10 |
|
- | ||||
| 14 | 8113P046-60 | Manual, Use & Care | 10 |
|
- | ||||
| 15 | 16000329 | Guide, Quick Ref. - Magic Chef |
|
- |
