Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3203897 Trim-top Vent Appelez-nous -
2 3202088 Bracket-clock Appelez-nous -
3 3203878 Clock Appelez-nous -
4 5303276631 Switch-light Appelez-nous -
5 3203898 Thermostat (lower) Appelez-nous -
6 3203879 Switch-selector Appelez-nous -
7 3203880 Thermostat (upper) Appelez-nous -
8 5303016305 Bezel-sw Appelez-nous -
9 3202194 Light-ind- Oven (2) Appelez-nous -
10 3202093 Bumper (4) Appelez-nous -
11 3202140 Trim-cont Panel Glass (2) Appelez-nous -
12 5303276516 Plate-inst Mtg Appelez-nous -
13 3203884 Spacer-dial Sel. Sw. Appelez-nous -
14 3203712 Spacer-dial (3) Appelez-nous -
15 3202178 Knob (3) Appelez-nous -
16 3203886 Dial - Sel. Sw. Appelez-nous -
17 3202416 Trim-center Vent Appelez-nous -
18 5303270130 Dial-therm (2) Appelez-nous -
19 3202285 Knob-clock Appelez-nous -
20 3203896 Glass-control Panel Appelez-nous -
21 3202418 Housing-control Appelez-nous -
22 3202417 Cover-cont Housing Appelez-nous -
23 5304409888 Block, Terminal   (Replaces: 5306563359) In-Stock Immediately $ 26.69

24 318003605 Switch-thermal   (Replaces: 3202388) Special Order $ 178.61


    View Diagram in Separate Window     Print Icon   Print Part List

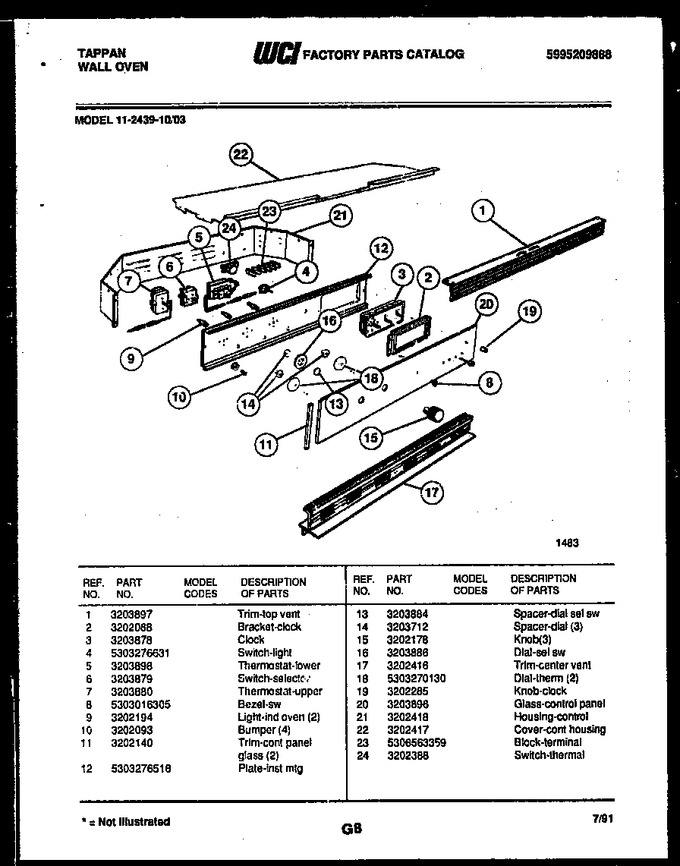

Diagram for 11-2439-00-03
