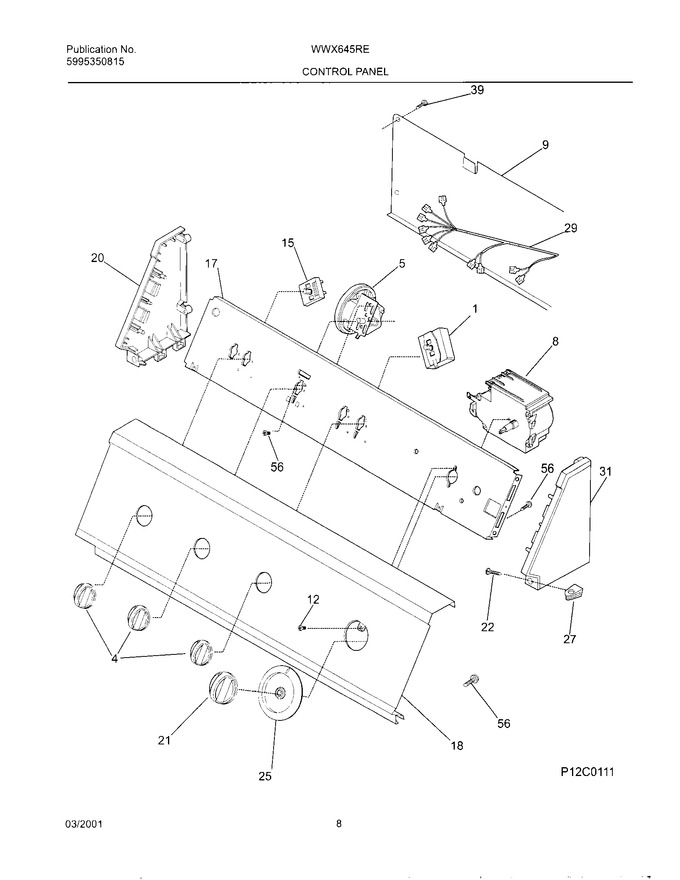

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131120400		Switch - Speed		Appelez-nous	-
4	131786604		Knob-rot-alm/dk Brn		Appelez-nous	-
5	131395500		Switch-pressure				$ 178.11
8	131964300		Timer Elec U Mallory Delta		Appelez-nous	-
9	5303205838		Backsheet-console		Appelez-nous	-
12	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
15	131081200		Switch-temperature		Appelez-nous	-
17	131580006		Bracket-control		Appelez-nous	-
18	134013700		Trimplate Wwx645ret		Appelez-nous	-
20	5303318524		End Cap,almond ,lh		Appelez-nous	-
21	131978302		Knob-timer Alm Midline Mf3		Appelez-nous	-
22	131266320		Screw-18x1.250 Poh Ab Alm Hd,18x1.250 ,poh Ab Alm Hd		Appelez-nous	-
25	131978204		Pntr-timer Alm/dk Brn Mf3		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
29	131794300		Harness-washer Wiring		Appelez-nous	-
31	5303318525		End Cap,almond ,rh		Appelez-nous	-
39	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Drive				$ 10.46
NI	134007800		Bezel-w/west-alm/blk Print		Appelez-nous	-
