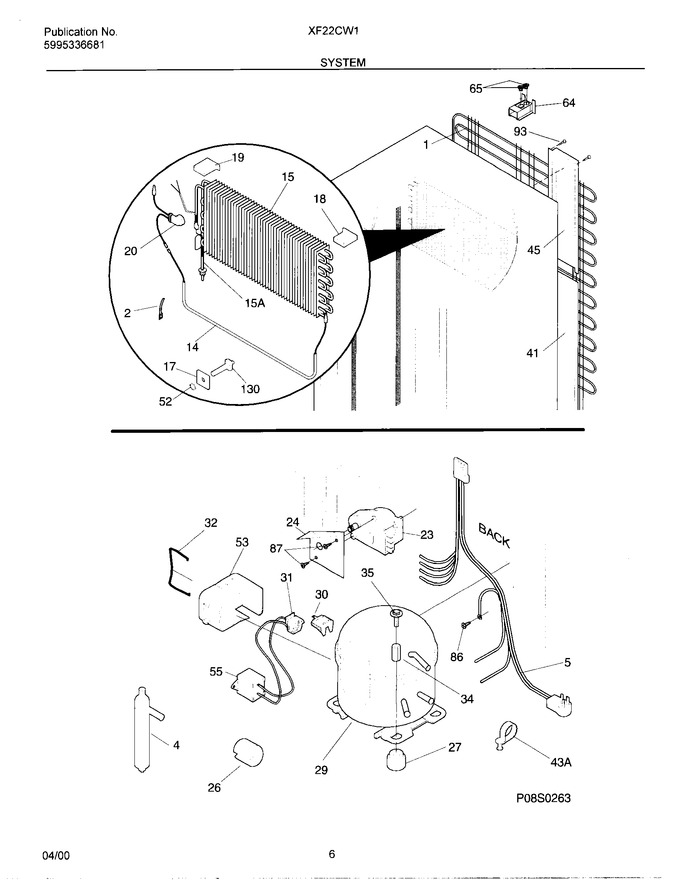

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 538.37
2	5308000110		Strap-evap/heater, Aluminum			Immediately	$ 59.82
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
5	216611900		Harness,electrical		Appelez-nous	-
14	216608501		Heater-defrost,230 V		Appelez-nous	-
15	216725000		Evaporator		Appelez-nous	-
17	06599546		Spacer-support, Evaporator		Appelez-nous	-
18	06599531		Insulation Block, Rh		Appelez-nous	-
19	3017674		Insulation Block, Lh		Appelez-nous	-
20	5304404743		Thermostat-defrost		Appelez-nous	-
23	216612200		Timer,12 Hr.		Appelez-nous	-
24	08016580		Bracket		Appelez-nous	-
26	216511900		Spacer-tube		Appelez-nous	-
27	216498900		Grommet,compressor				$ 13.01
29	216624700		Compressor,w/o Electricals		Appelez-nous	-
30	5303309882		Relay		Appelez-nous	-
31	216100121		Overload Protector		Appelez-nous	-
32	5303006412		Strap, Cover Mtg		Appelez-nous	-
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
41	216524000		Cover-wiring,rear		Appelez-nous	-
45	216389900		Cover-wiring, Rear/top		Appelez-nous	-
52	08013198		Retainer, Spacer Evap		Appelez-nous	-
53	08006982		Cover-terminal		Appelez-nous	-
55	216625100		Capacitor-run		Appelez-nous	-
64	216578800		Vent				$ 47.83
65	5309950074		Valve, Breather				$ 12.48
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
87	08037849		Screw				$ 8.98
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
130	06599544		Support, Evaporator		Appelez-nous	-
15A	297363100		Heat Exchanger   (Replaces: 216393200)				$ 148.92
43A	5303212614		Clip Harness				$ 2.88
