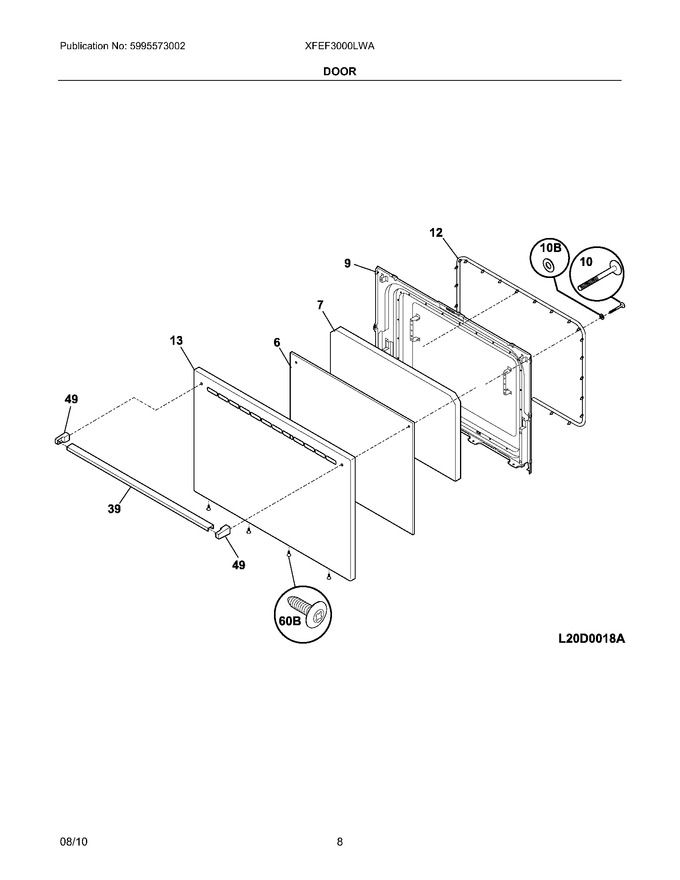

09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	316546800		Shield,knock Out		Appelez-nous	-
7	316236801		Insulation,oven Door				$ 58.59
9	316230621		Liner,oven Door		Appelez-nous	-
10	316001009		Screw,waf Hd Sq `10-24 X 1.88 ,(2) ,handle Mtg				$ 15.17
12	316239700		Seal,oven Door			Immediately	$ 152.43
13	316202609		Panel,oven Door ,white		Appelez-nous	-
39	316020204		Handle-door, Black, Oven		Appelez-nous	-
49	316137003		End Cap,handle ,black ,(2)				$ 48.54
10B	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316433600		Label,anti-tip		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
