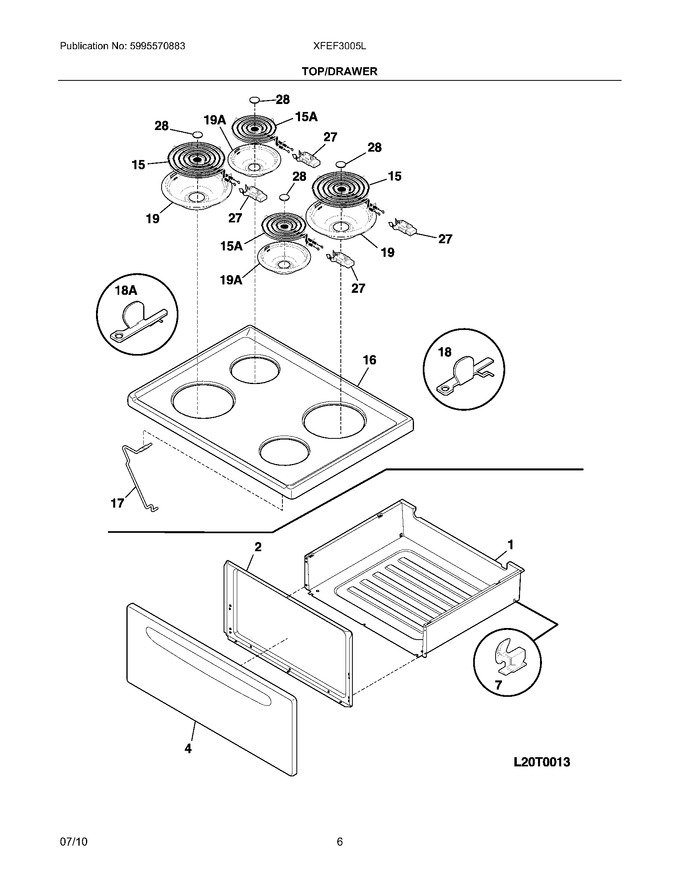

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316011503 | Drawer |
|
$ 131.51 | |||||
| 2 | 316231500 | Liner,drawer |
|
$ 54.40 | |||||
| 4 | 316231309 | Panel-drawer,bisque |
|
$ 78.25 | |||||
| 7 | 3051163 | Glide,drawer ,rear |
|
Immediately | $ 19.41 | ||||
| 16 | 316245405 | Main Top,bisque |
|
- | |||||
| 17 | 316066900 | Rod-maintop Support |
|
$ 66.31 | |||||
| 18 | 08067747 | Bracket-hinge,main Top Rh |
|
- | |||||
| 27 | 5303935058 | Terminal Block Kit,surface Element (Replaces: 5303912666) |
|
Immediately | $ 13.81 | ||||
| 28 | 5303017715 | Medallion,1 1/2``dia ,black ,surface Element |
|
$ 64.46 | |||||
| 18A | 08067746 | Bracket-hinge,main Top Lh |
|
- | |||||
| F15 | 316442300 | Element,surface ,8``/large ,2100w |
|
Immediately | $ 59.16 | ||||
| F15A | 318372210 | Element,surface ,6``/small ,1250w (Replaces: 316439800) |
|
Immediately | $ 20.21 | ||||
| F19 | 316048413 | Pan-surface Element,chrome ,large/8 Inch |
|
Immediately | $ 9.85 | ||||
| F19A | 316048414 | Pan-surface Element,chrome ,small/6 Inch |
|
Immediately | $ 16.11 | ||||
| FNI | 316580408 | Harness,wiring ,surface Units |
|
- | |||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 5308014215 | Screw`6-20 X 0.312 |
|
$ 2.28 |
