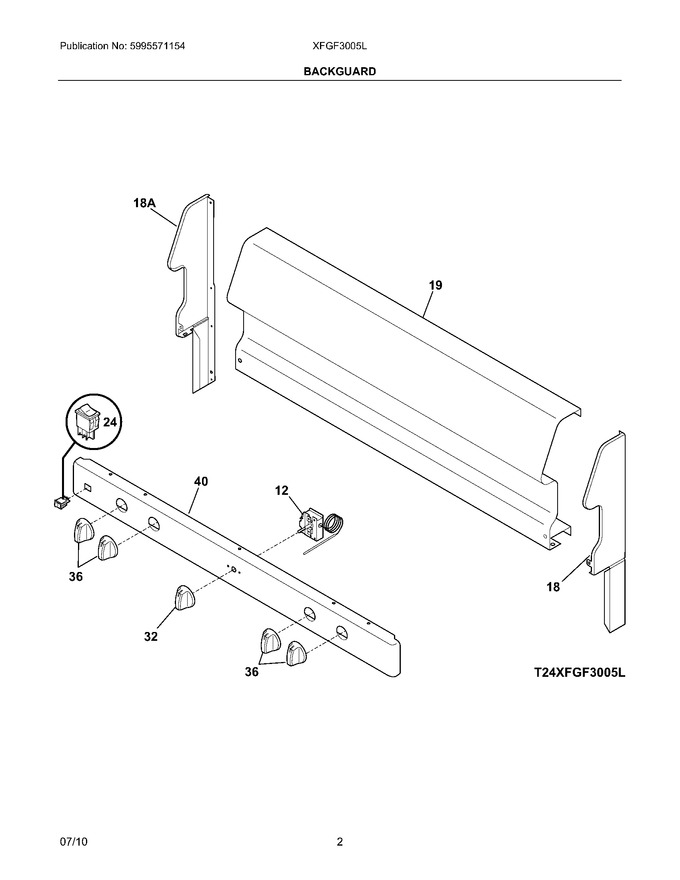

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	316263406		End Cap,bisque ,rh		Appelez-nous	-
19	316263378		Panel,backguard ,bisque		Appelez-nous	-
32	316543920		Knob,top Valve ,white ,(1)		Appelez-nous	-
36	316543911		Knob,top Valve ,bisque ,(4)		Appelez-nous	-
40	316458058		Panel,manifold ,bisque		Appelez-nous	-
18A	316263407		End Cap,bisque ,lh		Appelez-nous	-
F12	316032411		Thermostat			Immediately	$ 165.14
F24	316261202		Switch,rocker ,bisque		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.12
NI	316097602		Insulator		Appelez-nous	-
