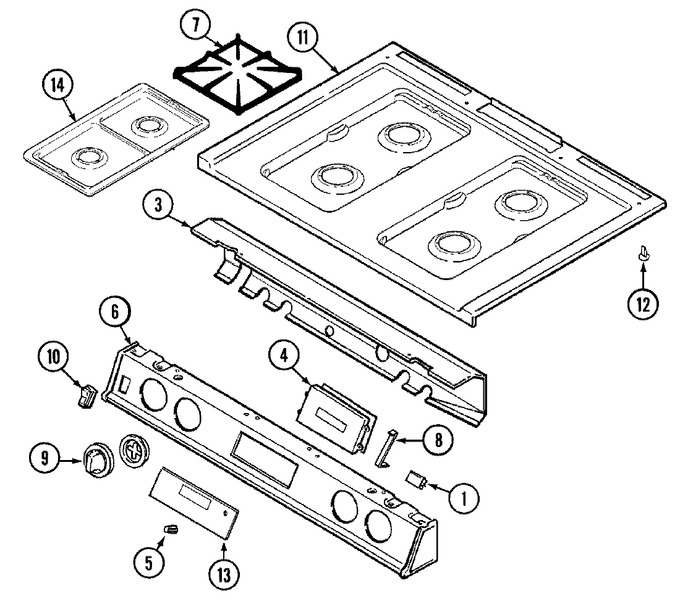

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7112P087-60 | Clip, Top Locking | 01 |
|
- | ||||
| 2 | W10856847 | Bezel, Knob (wht) (Replaces: 7740P059-60) | 01 |
|
$ 46.82 | ||||
| 3 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 01 |
|
Immediately | $ 12.62 | |||
| 3 | 74002588 | Cover, Manifold (rear) | 01 |
|
- | ||||
| 3 | 74001542 | Cover, Manifold (rear) | 01 |
|
- | ||||
| 4 | 7601P206-60 | Clock, Electronic | 01 |
|
$ 286.90 | ||||
| 4 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 01 |
|
$ 6.98 | ||||
| 5 | WP7711P492-60 | Knob, Clock (wht) (Replaces: 7711P432-60) | 01 |
|
$ 12.13 | ||||
| 6 | WP74004005 | Screw (Replaces: 7118P013-60) | 01 |
|
$ 6.95 | ||||
| 6 | 7712P171-60 | Panel, Manifold White | 01 |
|
- | ||||
| 7 | 2003W027-26 | Grate (gry) | 01 |
|
- | ||||
| 8 | 3801F222-45 | Bracket, Clock | 01 |
|
- | ||||
| 8 | WPY706189 | Screw (Replaces: 7101P346-60) | 01 |
|
Immediately | $ 6.47 | |||
| 9 | WP74003769 | Knob, Valve (wht) (Replaces: 7733P083-60) | 01 |
|
$ 15.24 | ||||
| 10 | 7403P200-60 | Switch, Rocker (wht) | 01 |
|
- | ||||
| 11 | WP74004005 | Screw (Replaces: 7118P013-60) | 01 |
|
$ 6.95 | ||||
| 11 | 2001F117-81 | Top, Main (wht) | 02 |
|
- | ||||
| 11 | 2001F115-81 | Top, Main (white) | 01 |
|
- | ||||
| 12 | 74001428 | Spacer, Main Top | 01 |
|
- | ||||
| 13 | 7403P338-60 | Switch, Membrane (wht) | 01 |
|
$ 181.49 | ||||
| 14 | 5401A452-60 | Drip Bowl Kit (accessory) | 01 |
|
- | ||||
| 15 | 5195D110-60 | Harness, Burner Box | 01 |
|
- | ||||
| 15 | 5170P138-60 | Harness, Sensor/lock | 01 |
|
- | ||||
| 15 | 5170P184-60 | Harness, Relay | 01 |
|
- | ||||
| 16 | 8113P066-60 | Manual, Use & Care | 01 |
|
- | ||||
| 16 | 16000329 | Guide, Quick Ref. - Magic Chef | 01 |
|
- |
