Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 7112P087-60 Clip, Top Locking 10 Appelez-nous -
2 W10856847 Bezel, Knob (wht)   (Replaces: 7740P059-60) 10 Special Order $ 46.82

3 74001542 Cover, Manifold (rear) 10 Appelez-nous -
4 7601P277-60 Clock (wht) 10 Appelez-nous -
4 WP59002061 Screw (6abx38-zn)   (Replaces: 7101P077-60) 10 Special Order $ 6.98

5 3807F431-45 Support, Main Top 10 Appelez-nous -
6 74001536 Panel, Manifold (wht) 10 Appelez-nous -
7 2003W027-26 Grate (gry) 10 Appelez-nous -
8 3801F349-51 Bracket, Clock 10 Appelez-nous -
9 WP74003769 Knob, Valve (wht)   (Replaces: 7733P083-60) 10 Special Order $ 15.24

10 7403P200-60 Switch, Rocker (wht) 10 Appelez-nous -
11 2001F117-81 Top, Main (wht) 10 Appelez-nous -
12 8016P014-60 Glide, Main Top 10 Appelez-nous -
13 WP7711P492-60 Knob, Clock (wht)   (Replaces: 7711P432-60) 10 Special Order $ 12.13

14 74001575 Harness, Control/relay 10 Appelez-nous -
14 5195D105-60 Harness, Burner Box 10 Appelez-nous -
14 5125A312-60 Harness, Loose/burner Box 10 Appelez-nous -
14 5170P228-60 Harness, Sensor & Lock 10 Appelez-nous -
15 8113P065-60 Manual, Use & Care 10 Appelez-nous -
15 8113P066-60 Manual, Use & Care 10 Appelez-nous -
16 16000329 Guide, Quick Ref. - Magic Chef 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

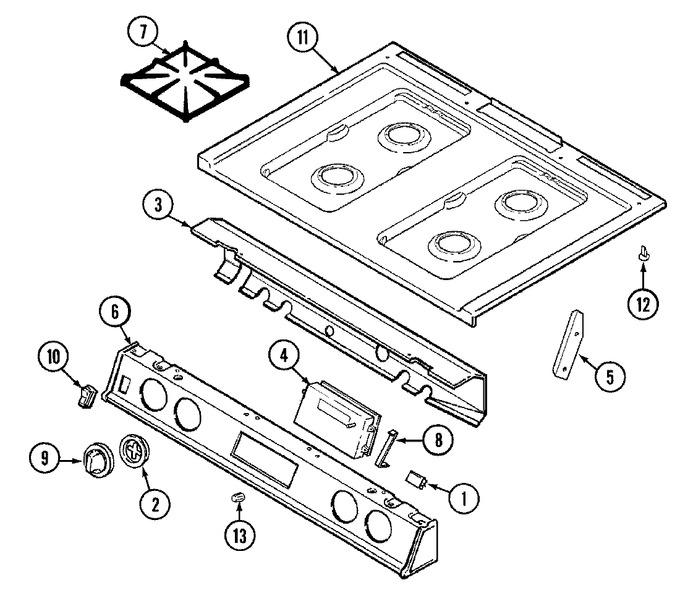

Diagram for 7498VVV
