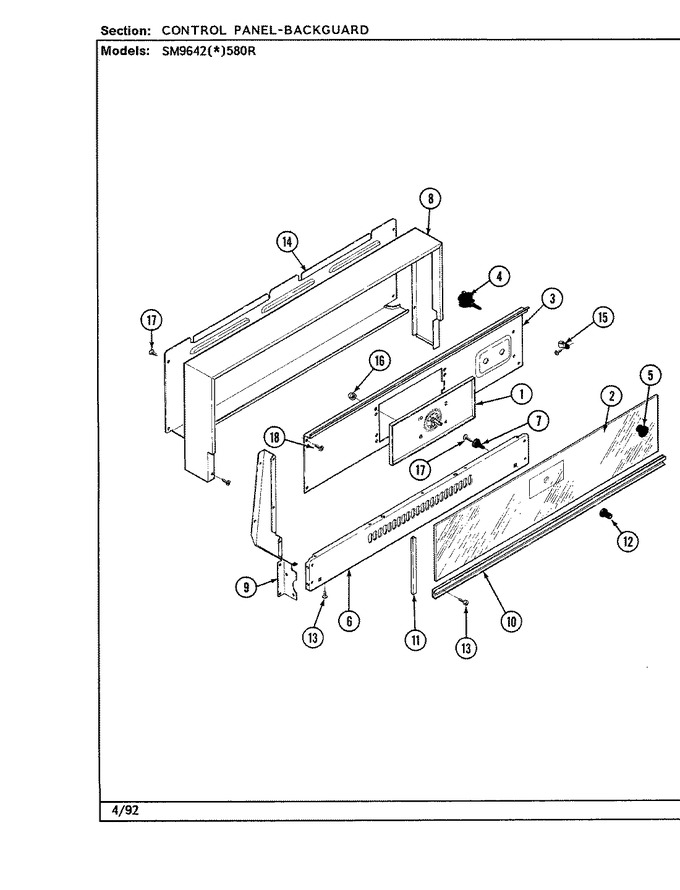

02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7602P110-60 | Clock | 01 |
|
- | ||||
| 2 | 7910P015-60 | Glass, Backguard | 01 |
|
- | ||||
| 3 | 3807F279-51 | Support, Clock | 01 |
|
- | ||||
| 4 | 7403P109-60 | Switch, Push (blk) | 01 |
|
- | ||||
| 5 | 7214P007-60 | Sleeve, Switch (blk) | 01 |
|
- | ||||
| 6 | 2620W044-90 | Panel, Bkgd. Lwr (black) | 01 |
|
- | ||||
| 7 | 8010P069-60 | Spacer, Hinge (main Top) | 01 |
|
$ 8.57 | ||||
| 8 | 4005F213-51 | Cover, Bkgd Wires | 01 |
|
- | ||||
| 8 | 3603F026-10 | Frame Bkgd | 01 |
|
- | ||||
| 9 | 3807F342-51 | Support, Backguard (left) | 01 |
|
- | ||||
| 9 | 3807F341-51 | Support, Bkgd (right) | 01 |
|
- | ||||
| 10 | 7716P017-60 | Trim, Backguard Bottom | 01 |
|
- | ||||
| 11 | 7742P001-60 | Trim, Glass Retainer | 01 |
|
- | ||||
| 12 | 7711P126-60 | Knob, Clock | 01 |
|
- | ||||
| 13 | 7101P158-60 | Screw, Bkgd Trim Bottom | 01 |
|
- | ||||
| 14 | 4005F213-51 | Cover, Bkgd Wires | 01 |
|
- | ||||
| 15 | 7111P015-60 | Clamp, Wire | 01 |
|
- | ||||
| 16 | WPW10131078 | Nut, Lock (Replaces: 7103P085-60) | 01 |
|
$ 4.00 | ||||
| 17 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 | |||
| 18 | 5180A102-60 | Harness, Wire Upper | 01 |
|
- | ||||
| 18 | W11233072 | Screw (Replaces: 7101P147-60) | 01 |
|
Immediately | $ 12.62 | |||
| NI | 8112P101-60 | Manual, Use & Care-insert | 01 |
|
- | ||||
| NI | 8112P065-60 | Manual, Use & Care | 01 |
|
- |
