01 - Body/cavity/elements


02 - Control Panel/door Assembly


03 - Internal Controls/latch Asy/base

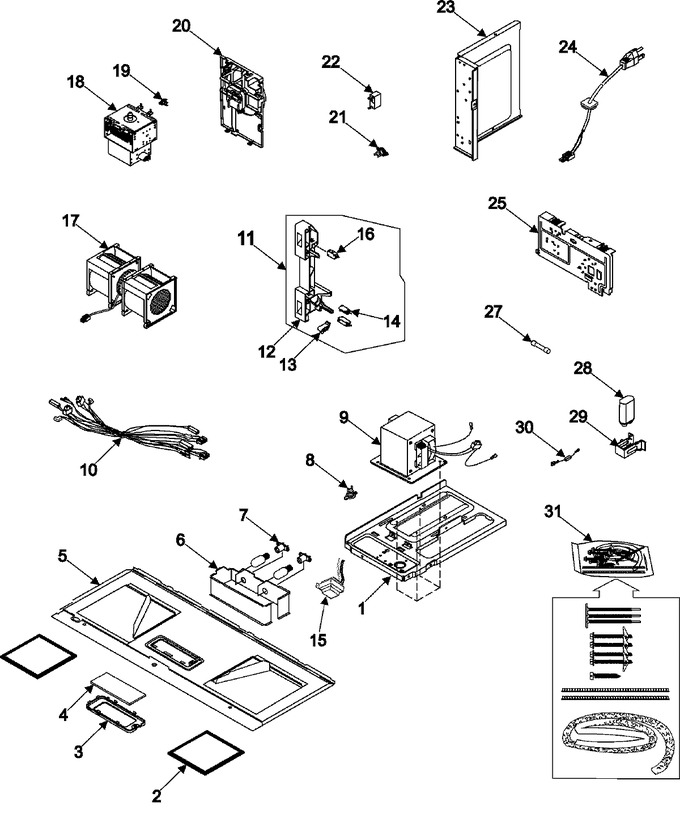

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE80-10121B		Base-plate		Appelez-nous	-
2	DE63-30011A		Filter-air			Immediately	$ 26.60
3	DE71-60385C		Cover-glass		Appelez-nous	-
4	DE67-40152A		Glass-cooktop Lamp		Appelez-nous	-
5	DE61-00245C		Base-bottom		Appelez-nous	-
6	DE61-50464A		Bracket-bottom Lamp		Appelez-nous	-
7	DE47-00006A		Holder-lamp				$ 17.58
8	555555		Sw-thermo   (Replaces: DE47-20059A)				$ 151.94
9	DE26-10136B		Trans H.v;shv-7778ucr,120v,60h				$ 165.83
10	DE39-00371A		Wire Harness-a;smh4150,120v60h		Appelez-nous	-
11	DE96-00154B		Assy Body Latch;smh4150wd,otr6				$ 53.40
12	DE61-00249A		Body-latch				$ 43.88
13	DE66-90106B		Lever-switch Lower				$ 17.58
14	3405-001033		Switch-micro			Immediately	$ 17.58
15	DE26-00111A		Trans-l.v		Appelez-nous	-
16	3405-001034		Switch, Micro (125/250 Vac)			Immediately	$ 14.85
17	DE31-10178A		Motor-ventilation				$ 116.33
18	W10126787		Assy-magnetron				$ 70.20
19	555555		Thermostat   (Replaces: DE47-20007A)				$ 151.94
20	555555		Assy-motor Fan   (Replaces: DE92-90552C)				$ 151.94
21	DE47-20020A		Thermostat				$ 17.58
22	DE59-50002A		Capacitor-motor			Immediately	$ 27.34
23	DE72-50084A		Duct-side		Appelez-nous	-
24	DE96-00218A		Assy-power Cord				$ 78.75
25	DE61-50540A		Bracket-air Guide-a		Appelez-nous	-
27	ABC20		Cartridge, Fuse   (Replaces: 3601-001198)			Immediately	$ 10.31
28	2501-001011		Capacitor			Immediately	$ 74.17
29	DE61-50120A		Bracket-hvc		Appelez-nous	-
30	DE91-70063D		Assy-hvd			Immediately	$ 15.89
31	DE92-90505D		Assy-hard Ware				$ 40.02
NI	3602-001025		Holder, Fuse		Appelez-nous	-
