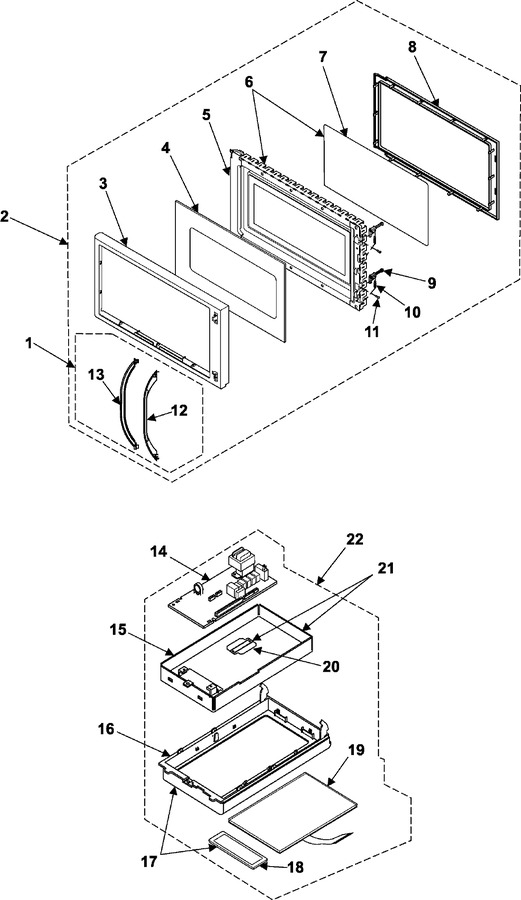

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE97-00250A		Assy-handle				$ 33.30
2	DE94-00595G		Assy Door				$ 134.47
3	DE64-00328D		Door-a		Appelez-nous	-
4	DE64-00444B		Screen-door(b)		Appelez-nous	-
5	DE94-00586B		Assy Door-e				$ 154.13
6	DE94-00603A		Assy Door-e(sub)		Appelez-nous	-
7	DE01-00091A		Film-door				$ 13.32
8	DE64-00337A		Door-c				$ 28.04
9	DE64-00157A		Door-key				$ 1.45
10	DE61-00151A		Spring-key				$ 44.47
11	DE60-60008A		Pin-hinge				$ 0.85
12	DE64-00415A		Handle-door				$ 15.36
13	DE63-00071A		Cover-handle		Appelez-nous	-
14	RAS-7SMT-07		Assy Pcb Parts		Appelez-nous	-
15	DE61-00266A		Bracket-pcb		Appelez-nous	-
16	DE64-00331A		Control-panel		Appelez-nous	-
17	DE94-00587A		Assy Control-panel;-,ssotr6,bl		Appelez-nous	-
18	DE64-00416A		Window-display				$ 5.60
19	DE34-00168D		Switch Membrane		Appelez-nous	-
20	DE61-50525A		Bracket-c/panel		Appelez-nous	-
21	DE97-00255A		Assy-bkt C/panel		Appelez-nous	-
22	DE94-00807H		Assy Control-box		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
