SELECT A DIAGRAM
01 - Body/cavity/elements
02 - Control Panel/door Assembly
03 - Internal Controls/latch Asy/base
04 - Supplemental Information
SELECT A DIAGRAM
New Model Search:

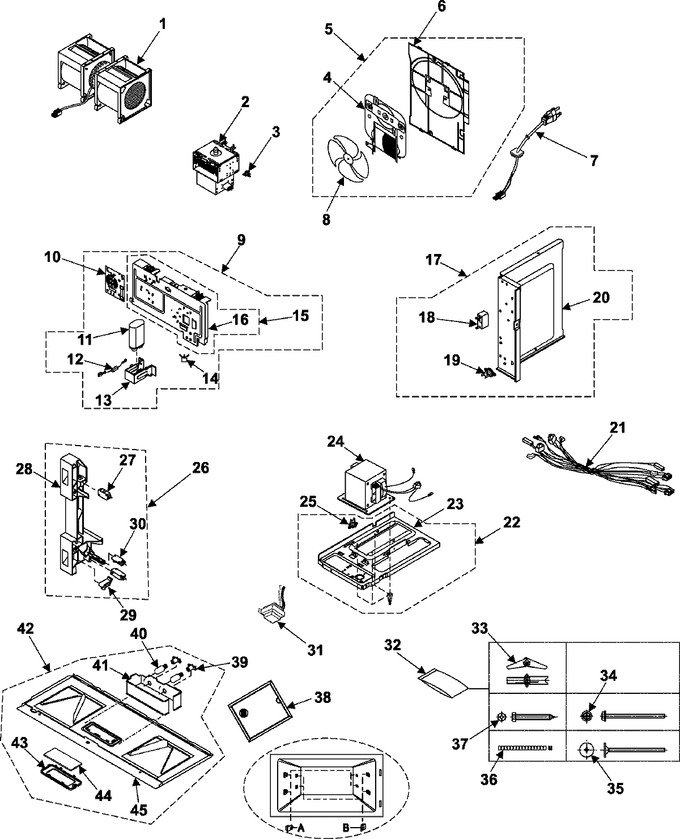

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE31-10178A | Motor-ventilation |
|
$ 116.33 | |||||
| 2 | W10126787 | Assy-magnetron |
|
$ 70.20 | |||||
| 3 | 555555 | Thermostat (Replaces: DE47-20007A) |
|
$ 151.94 | |||||
| 4 | 555555 | Motor-fan (Replaces: DE31-10177A) |
|
$ 151.94 | |||||
| 5 | 555555 | Assy-motor Fan (Replaces: DE92-90552C) |
|
$ 151.94 | |||||
| 6 | DE71-60455A | Cover-motor |
|
$ 33.80 | |||||
| 7 | DE96-00218A | Assy-power Cord |
|
$ 78.75 | |||||
| 8 | DE31-90051A | Blade-fan |
|
$ 6.95 | |||||
| 9 | DE93-90107L | Assy-bkt A/guide;smh4150,- |
|
- | |||||
| 10 | DE96-00400A | Assy Noise Filter;sn-uf12a,250 |
|
$ 84.88 | |||||
| 11 | 2501-001011 | Capacitor |
|
Immediately | $ 74.17 | ||||
| 12 | DE91-70063D | Assy-hvd |
|
Immediately | $ 15.89 | ||||
| 13 | DE61-50120A | Bracket-hvc |
|
- | |||||
| 14 | DE61-30129A | Supporter-pcb |
|
$ 16.82 | |||||
| 15 | DE61-50540A | Bracket-air Guide-a |
|
- | |||||
| 16 | DE61-50463A | Bracket-air Guide |
|
- | |||||
| 17 | DE92-90500A | Assy-duct Side |
|
- | |||||
| 18 | DE59-50002A | Capacitor-motor |
|
Immediately | $ 27.34 | ||||
| 19 | DE47-20020A | Thermostat |
|
$ 17.58 | |||||
| 20 | DE72-50084A | Duct-side |
|
- | |||||
| 21 | DE96-00492A | Assy-wire Harness A;smh7150we/ |
|
- | |||||
| 22 | DE96-00153B | Assy Base Plate-sub |
|
- | |||||
| 23 | DE80-10121B | Base-plate |
|
- | |||||
| 24 | DE26-10136B | Trans H.v;shv-7778ucr,120v,60h |
|
$ 165.83 | |||||
| 25 | 555555 | Sw-thermo (Replaces: DE47-20059A) |
|
$ 151.94 | |||||
| 26 | DE96-00154B | Assy Body Latch;smh4150wd,otr6 |
|
$ 53.40 | |||||
| 27 | 3405-001034 | Switch, Micro (125/250 Vac) |
|
Immediately | $ 14.85 | ||||
| 28 | DE61-00249A | Body-latch |
|
$ 43.88 | |||||
| 29 | DE66-90106B | Lever-switch Lower |
|
$ 17.58 | |||||
| 30 | 3405-001033 | Switch-micro |
|
Immediately | $ 17.58 | ||||
| 31 | DE26-20155B | Trans-l.v |
|
$ 89.92 | |||||
| 32 | DE92-90505D | Assy-hard Ware |
|
$ 40.02 | |||||
| 33 | DE60-30022A | Nut-toggle |
|
$ 16.82 | |||||
| 34 | DE60-20022A | Bolt-toggle |
|
$ 18.68 | |||||
| 35 | DE60-20066A | Bolt-flat |
|
Immediately | $ 20.62 | ||||
| 36 | DE63-10011A | Grommet |
|
$ 2.03 | |||||
| 37 | DE60-10111A | Screw-lag |
|
$ 17.58 | |||||
| 38 | DE63-30011A | Filter-air |
|
Immediately | $ 26.60 | ||||
| 39 | DE47-00006A | Holder-lamp |
|
$ 17.58 | |||||
| 40 | 4713-001013 | Lamp-incandescent |
|
Immediately | $ 18.00 | ||||
| 41 | DE61-50464A | Bracket-bottom Lamp |
|
- | |||||
| 42 | DE97-00248B | Assy-base Bottom;ssotr (1.6 Cu |
|
- | |||||
| 43 | DE71-60385C | Cover-glass |
|
- | |||||
| 44 | DE67-40152A | Glass-cooktop Lamp |
|
- | |||||
| 45 | DE61-00245C | Base-bottom |
|
- |
