View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

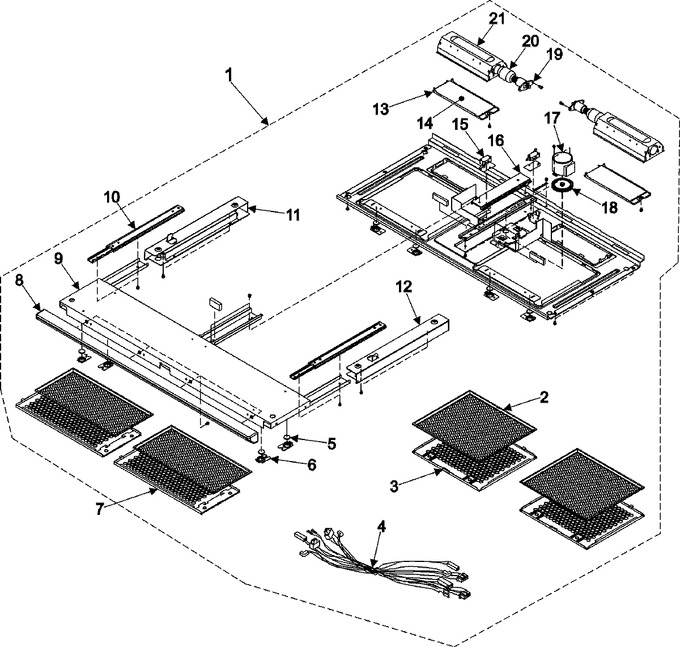

01 - Assy-base Bottom
02 - Body/cavity/elements
03 - Control Panel/door Assembly
04 - Internal Controls/latch
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | DE63-30011A | Filter-air |
|
Immediately | $ 26.60 | ||||
| 2 | 555555 | Filter-air (Replaces: DE63-00231A) |
|
$ 151.94 | |||||
| 3 | DE97-00453A | Assy-cover Filter Rear |
|
- | |||||
| 4 | DE39-40674A | Wire Harness-b |
|
- | |||||
| 4 | DE96-00303A | Assy-wire Harness B |
|
- | |||||
| 5 | DE61-00614A | Magnet-filter |
|
- | |||||
| 6 | DE61-00596A | Holder-magnet |
|
- | |||||
| 6 | DE61-00596B | Holder-magnet |
|
- | |||||
| 7 | DE97-00454A | Assy-cover Filter Front ---sna |
|
- | |||||
| 8 | DE64-01042A | Decoration-front;smh7159bc,pc, |
|
- | |||||
| 9 | DE97-00463A | Assy-top Plate(sub) |
|
- | |||||
| 10 | DE97-00442A | Assy-slide Rail |
|
- | |||||
| 11 | DE97-00446A | Assy-frame(l) |
|
- | |||||
| 12 | DE97-00447A | Assy-frame(r) |
|
- | |||||
| 13 | 555555 | Cover-cooktop Lamp (Replaces: DE63-00100B) |
|
$ 151.94 | |||||
| 13 | 555555 | Cover-cooktop Lamp (Replaces: DE63-00100A) |
|
$ 151.94 | |||||
| 14 | DE67-40063A | Glass-cooktop Lamp |
|
Immediately | $ 18.00 | ||||
| 15 | 3405-001072 | Switch-micro |
|
- | |||||
| 16 | DE62-00045A | Insulation-film |
|
- | |||||
| 17 | DE31-00030A | Motor Drive |
|
$ 103.59 | |||||
| 18 | DE66-00150A | Gear-main |
|
- | |||||
| 19 | DE47-00006A | Holder-lamp |
|
$ 17.58 | |||||
| 20 | 4713-001013 | Lamp-incandescent |
|
Immediately | $ 18.00 | ||||
| 21 | DE61-00319A | Bracket-bottom Lamp |
|
- |
