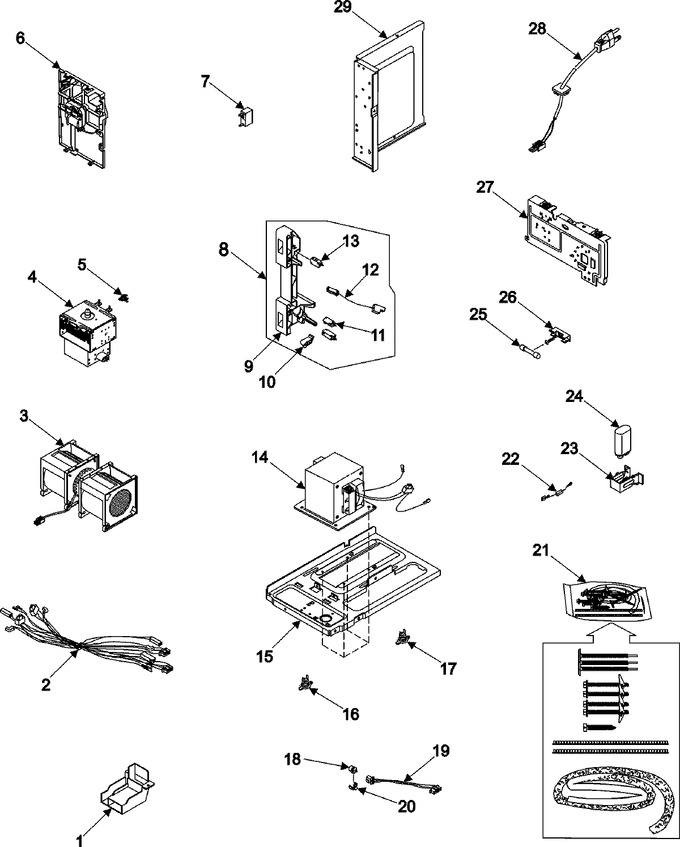

01 - Assy-base Bottom


02 - Body/cavity/elements


03 - Control Panel/door Assembly


04 - Internal Controls/latch


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE61-00607A		Guide-air Motor		Appelez-nous	-
2	DE96-00302A		Assy-wire Harness A		Appelez-nous	-
3	DE31-10178A		Motor-ventilation				$ 116.33
4	YOM75P10ESS		Magnetron		Appelez-nous	-
5	555555		Thermostat   (Replaces: DE47-20007A)				$ 151.94
6	555555		Assy-motor Fan   (Replaces: DE92-90552C)				$ 151.94
7	DE59-50002A		Capacitor-motor			Immediately	$ 27.34
8	DE96-00154A		Assy Body Latch				$ 54.75
9	DE61-00249A		Body-latch				$ 43.88
10	DE66-90106B		Lever-switch Lower				$ 17.58
11	3405-001033		Switch-micro			Immediately	$ 17.58
12	DE96-00303A		Assy-wire Harness B		Appelez-nous	-
13	3405-001034		Switch, Micro (125/250 Vac)			Immediately	$ 14.85
14	DE26-10136B		Trans H.v;shv-7778ucr,120v,60h				$ 165.83
15	DE80-10121C		Base-plate		Appelez-nous	-
16	DE47-20196B		Thermostat				$ 6.76
17	DE47-20034A		Thermostat			Immediately	$ 20.09
18	DE32-60013A		Sensor-gas				$ 94.70
19	DE39-40678A		Wire Harness-s				$ 29.11
20	DE61-90111A		Holder-sensor				$ 0.88
21	DE92-90505D		Assy-hard Ware				$ 40.02
22	DE91-70063D		Assy-hvd			Immediately	$ 15.89
23	DE61-50120A		Bracket-hvc		Appelez-nous	-
24	2501-001011		Capacitor			Immediately	$ 74.17
25	ABC20		Cartridge, Fuse   (Replaces: 3601-001198)			Immediately	$ 10.31
26	3602-001025		Holder, Fuse		Appelez-nous	-
27	DE61-50540A		Bracket-air Guide-a		Appelez-nous	-
28	DE39-10102A		Power Cord		Appelez-nous	-
29	DE72-50084A		Duct-side		Appelez-nous	-
