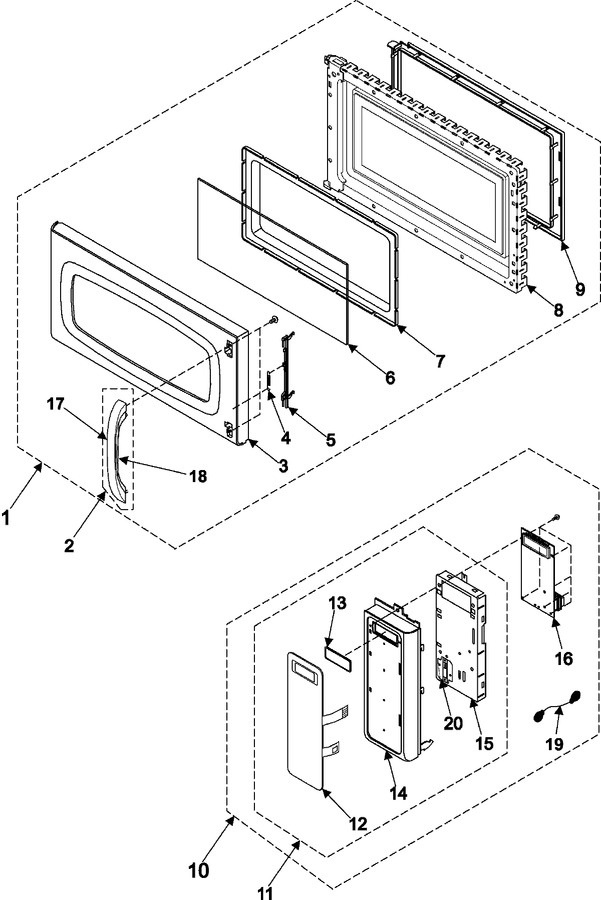

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	555555		Assy Door   (Replaces: DE94-00881B)				$ 151.94
2	DE97-00358B		Assy-handle				$ 37.43
3	DE64-00757B		Door-a		Appelez-nous	-
4	555555		Spring-es   (Replaces: 6107-001175)				$ 151.94
5	DE64-00760A		Key-door			Immediately	$ 19.94
6	DE64-00910A		Screen-door(b)				$ 91.83
7	DE64-00864A		Door-sub		Appelez-nous	-
8	DE94-00882B		Assy Door-e(coating)				$ 118.11
9	DE64-00759A		Door-c				$ 26.60
10	DE94-00933P		Assy Control-box;-,smh7174we/x		Appelez-nous	-
11	DE94-00939P		Assy Control-panel;120v/60hz,s		Appelez-nous	-
12	DE34-00178R		Switch Membrane;smh7174we/xaa,		Appelez-nous	-
13	DE64-00766B		Window-display;4150,san,t2.0,w				$ 13.33
14	DE64-00763B		Control-panel		Appelez-nous	-
15	DE97-00359B		Assy-bkt-c/panel;smh7175,bkt-c		Appelez-nous	-
16	W10127127		Assy Pcb Parts;smh7175,120v/60		Appelez-nous	-
17	DE63-00139B		Cover-handle		Appelez-nous	-
18	DE64-00761B		Handle-door		Appelez-nous	-
19	DE39-40673A		Wire Harness-h				$ 5.03
20	DE61-00266A		Bracket-pcb		Appelez-nous	-
