01 - Body/cavity/elements
02 - Control Panel/door Assembly
03 - Internal Controls/latch Asy/base
SELECT A DIAGRAM
New Model Search:

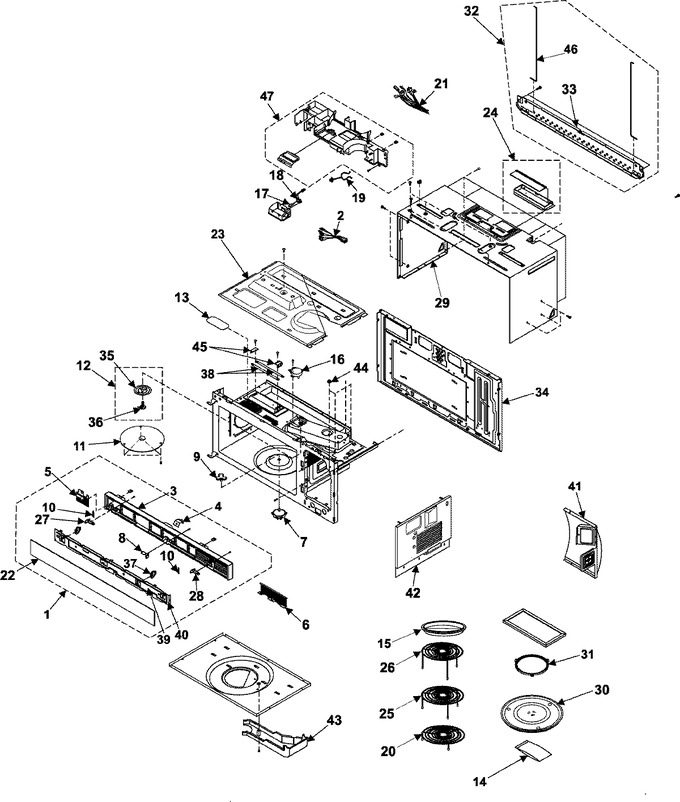

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE97-00415A | Assy-grille |
|
- | |||||
| 2 | DE39-00361A | Wire Harness-cam |
|
- | |||||
| 3 | DE64-00859A | Grille |
|
- | |||||
| 4 | DE63-00244A | Earth-grille |
|
- | |||||
| 5 | DE61-00626A | Bracket-grille |
|
- | |||||
| 6 | DE63-00207A | Cover-front |
|
- | |||||
| 7 | 555555 | Motor, Drive (Replaces: DE31-10172A) |
|
$ 151.94 | |||||
| 8 | DE61-00177A | Hinge-grille(m) |
|
$ 17.58 | |||||
| 9 | DE67-00181A | Coupler |
|
$ 16.82 | |||||
| 10 | DE61-00120A | Spring-louver |
|
- | |||||
| 11 | DE97-00427A | Assy-cover Stirrer |
|
- | |||||
| 12 | DE97-00419A | Assy-stirrer |
|
- | |||||
| 13 | DE64-01088A | Glass-oven Lamp |
|
$ 20.08 | |||||
| 14 | DE92-90505E | Assy-hard Ware |
|
$ 41.40 | |||||
| 15 | DE63-00234A | Tray-convection |
|
$ 144.29 | |||||
| 16 | DE31-10173A | Motor-drive |
|
$ 54.87 | |||||
| 17 | 4713-001165 | Lamp-halogen |
|
Immediately | $ 33.30 | ||||
| 18 | DE47-00032A | Socket-lamp Halogen |
|
- | |||||
| 19 | 6502-000127 | Cable Clamp |
|
$ 13.33 | |||||
| 20 | DE97-00456C | Assy-wire Rack(lower) |
|
$ 68.23 | |||||
| 21 | DE39-00360A | Wire Harness-c |
|
- | |||||
| 22 | DE63-00221A | Cover-grille |
|
- | |||||
| 23 | DE97-00426A | Assy-cover Adibatic Upper |
|
- | |||||
| 24 | DE92-90242B | Assy-hood Damper;otr,outsource |
|
$ 27.34 | |||||
| 25 | DE97-00456B | Assy-wire Rack (middle) |
|
$ 73.58 | |||||
| 26 | DE97-00456A | Assy-wire Rack(high) |
|
$ 73.58 | |||||
| 27 | DE61-00129A | Hinge-grille(l) |
|
$ 16.82 | |||||
| 28 | DE61-00128A | Hinge-grille(r) |
|
$ 16.82 | |||||
| 29 | DE64-01144A | Panel-outer (blk) |
|
$ 128.11 | |||||
| 30 | DE74-20016A | Tray, Glass Cooking |
|
$ 110.72 | |||||
| 31 | DE97-00368B | Assy-guide Roller |
|
$ 49.64 | |||||
| 32 | DE97-00363A | Assy-mounting Plate |
|
$ 22.41 | |||||
| 33 | 555555 | Plate-mounting (Replaces: DE70-00378A) |
|
$ 151.94 | |||||
| 34 | DE97-00433A | Assy-panel Back;smv9165,assy-a |
|
- | |||||
| 35 | DE66-00127A | Blade-stirrer |
|
- | |||||
| 36 | DE61-00160A | Holder-stirred |
|
- | |||||
| 37 | DE61-00150A | Bracket-barrier Gr |
|
$ 17.58 | |||||
| 38 | DE47-70030E | Heater-ceramic |
|
- | |||||
| 39 | DE61-00574A | Bracket-cover Grille |
|
- | |||||
| 40 | DE97-00418A | Assy-cover Grille |
|
- | |||||
| 41 | DE61-00489A | Bracket-rear |
|
$ 37.51 | |||||
| 42 | DE97-00432A | Assy-cover Adibatic Right |
|
$ 128.74 | |||||
| 43 | DE61-00502A | Guide-air(bottom) |
|
$ 40.33 | |||||
| 44 | DE60-30015A | Nut-flange |
|
$ 0.85 | |||||
| 45 | DE61-00481A | Bracket-heater |
|
- | |||||
| 46 | DE66-00121A | Wire-mounting |
|
$ 16.09 | |||||
| 47 | DE97-00424A | Assy-duct Exhaust |
|
- |
