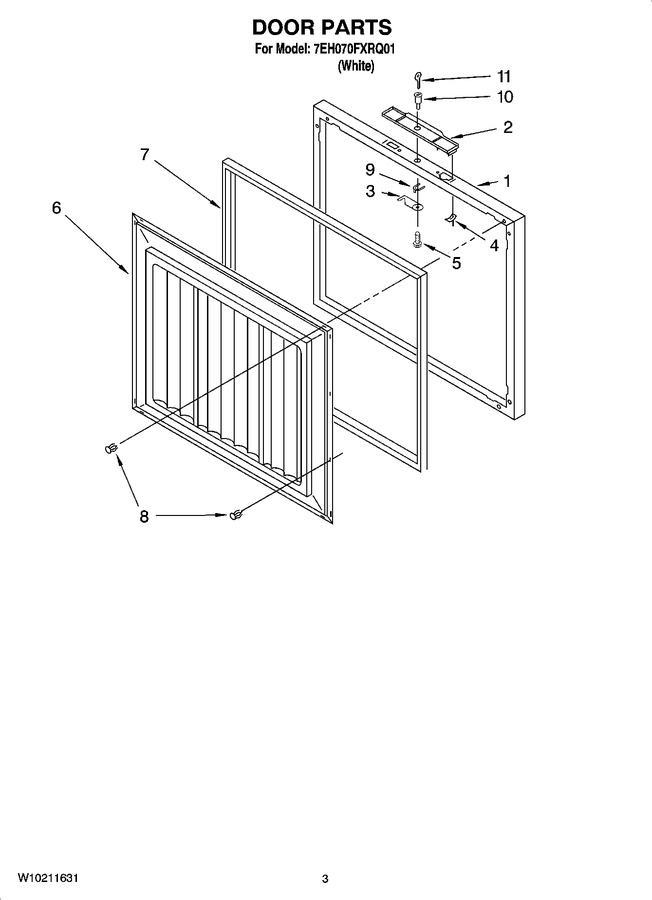

02 - Door Parts
03 - Unit Parts, Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10211565 | Exterior Door Panel (includes Insulation & Item 8) |
|
- | |||||
| 2 | 4356657 | Handle |
|
$ 110.02 | |||||
| 3 | 2-35195-002 | Hook, Lock Bolt (Replaces: 4356608) |
|
$ 57.10 | |||||
| 4 | 4356306 | Clip, Handle Oblong |
|
$ 7.36 | |||||
| 5 | W11233072 | Screw (Replaces: 4356609) |
|
Immediately | $ 12.62 | ||||
| 6 | W10211566 | Interior Door Panel (includes Item 8) |
|
- | |||||
| 7 | W10211568 | Gasket (includes Item 8) |
|
- | |||||
| 8 | 4356703 | Clips, Plastic Mounting Kit |
|
$ 43.62 | |||||
| 9 | 4356493 | Clip, Spring |
|
- | |||||
| 10 | 3-35284-001 | Lock (Replaces: 4356759) |
|
$ 24.42 | |||||
| 11 | 4356304 | Key |
|
- |
