View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control Panel-upper (cm46b-9p)
02 - Door
03 - Door-upper (cm46b-9p)
04 - Interlock Switches-upper (cm46b-9p)
05 - Internal Controls-upper (cm46b-9p)
SELECT A DIAGRAM
New Model Search:

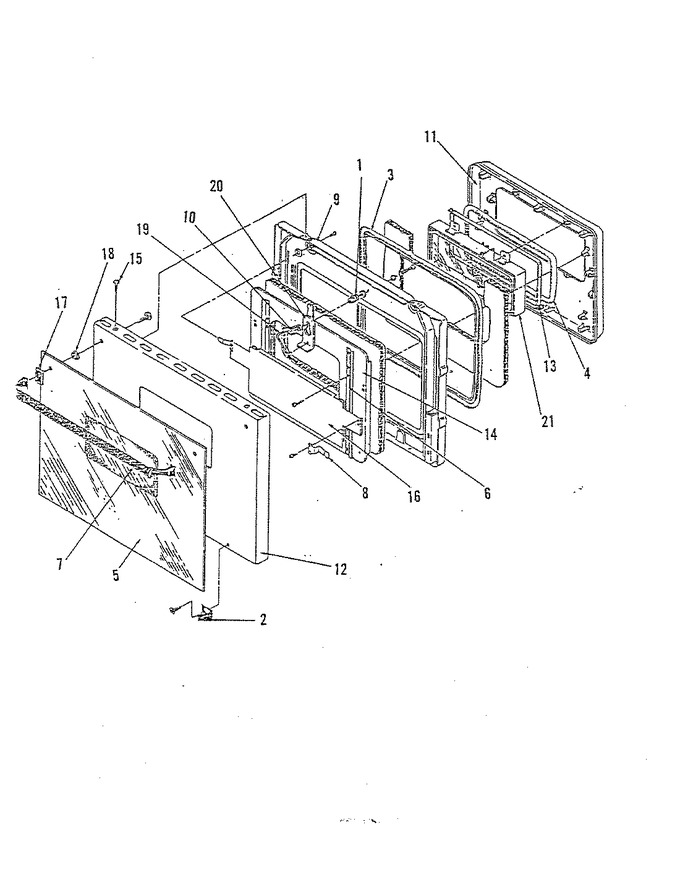

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8003P002-60 | Bumper Door (round) | 01 |
|
- | ||||
| 1 | 8007P002-60 | Bushing | 01 |
|
- | ||||
| 2 | 7112P010-60 | Clip, Oven Door | 01 |
|
- | ||||
| 3 | 7201P004-60 | Gasket | 01 |
|
- | ||||
| 4 | 7201P020-60 | Gasket | 01 |
|
- | ||||
| 5 | 7902P106-60 | Dr Glass Black | 01 |
|
- | ||||
| 6 | 0749228 | Retainer | 01 |
|
- | ||||
| 7 | 7701P024-60 | Handle, Door (blk) | 01 |
|
$ 67.19 | ||||
| 9 | 2402W083-12 | Lining Assy, Wd Ov Dr | 01 |
|
- | ||||
| 10 | 1555248 | Nut Self Locking | 01 |
|
- | ||||
| 11 | 0661222 | Pad, Oven Door | 01 |
|
- | ||||
| 12 | 2401F054-70 | Panel, Oven Door | 01 |
|
- | ||||
| 13 | Y0749236 | Retainer, Gasket | 01 |
|
- | ||||
| 14 | 3611F006-51 | Retainer Insul | 01 |
|
- | ||||
| 15 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 01 |
|
$ 15.94 | ||||
| 15 | 7101P052-60 | Screw, Handle | 01 |
|
- | ||||
| 16 | 0787426 | Shield, Oven Door | 01 |
|
- | ||||
| 17 | 8010P015-60 | Spacer, Handle (blk) | 01 |
|
- | ||||
| 18 | 74003986 | Spacer, Glass (Replaces: 8010P016-60) | 01 |
|
$ 13.08 | ||||
| 18 | 7803P011-60 | Spring, Oven Dr. | 01 |
|
- | ||||
| 19 | 7803P020-60 | Spring, Ovn Door | 01 |
|
- | ||||
| 20 | 0112243 | Stop, Latch | 01 |
|
- | ||||
| 21 | 5700A082-60 | Window Assy. | 01 |
|
$ 164.77 |
