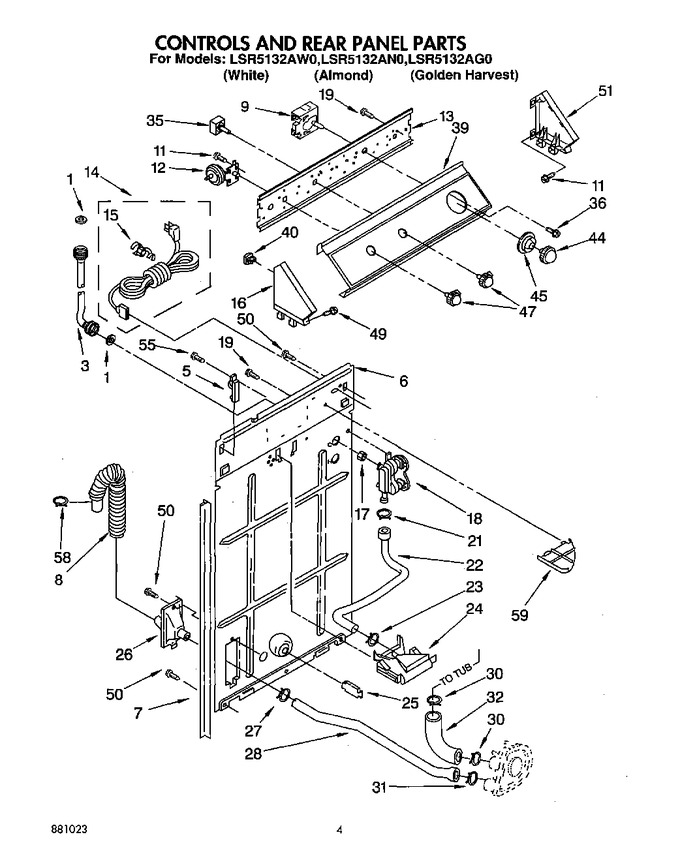

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: 16123)				$ 6.93
3	WP89503		(alt.)   (Replaces: 81339)			Immediately	$ 21.68
3	387057		(alt.)		Appelez-nous	-
3	WP89503		(alt.)   (Replaces: 366108)			Immediately	$ 21.68
3	WP89503		Hose, Water Inlet (2)   (Replaces: 660028)			Immediately	$ 21.68
5	387402		Hinge, Console (2)				$ 5.84
6	3357978		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 23.63
8	285664		Hose, Drain (5 1/2 Ft.)   (Replaces: 661575)			Immediately	$ 33.20
8	285666		Hose, Drain (10 Ft.) (not Included)   (Replaces: 661577)			Immediately	$ 56.11
9	285952		Timer, Control (60 Hz.) (motor Not A Service Part)   (Replaces: 3351734)				$ 321.75
11	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 6.75
12	WP3356467		Switch, Water Level   (Replaces: 3356468)				$ 153.17
13	WP3948608		Bracket, Control   (Replaces: 3358469)				$ 104.57
14	W10820044		Cord, Power   (Replaces: 62734)				$ 128.46
15	W11733005		Strain Relief, Power Cord   (Replaces: 63848)				$ 11.64
16	3358532		Cap, End (l.h.) (almond/chrome)		Appelez-nous	-
16	3358531		Cap, End (l.h.) (white/chrome)		Appelez-nous	-
17	WP96160		Screen, Filter (2)   (Replaces: 96160)				$ 10.54
18	285805		Valve, Water Mixing   (Replaces: 358992)			Immediately	$ 49.57
19	WP3351614		Screw, 10-24 X 3/8 (2)   (Replaces: 90864)			Immediately	$ 6.26
21	WP596669		(alt.)   (Replaces: 353367)			Immediately	$ 7.56
21	WP596669		Clamp, Hose   (Replaces: 660632)			Immediately	$ 7.56
21	WP596669		(alt.)   (Replaces: 272846)			Immediately	$ 7.56
22	WP3357328		Hose, Vacuum Break   (Replaces: 3357328)			Immediately	$ 22.30
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 7.56
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 45.41
25	WP8519200		Support, Rear Panel   (Replaces: 63290)			Immediately	$ 17.01
26	WPW10358149		Connector, Drain Hose   (Replaces: 3355497)			Immediately	$ 43.34
27	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
28	WP3348552		Hose, Pump To Drain Connector   (Replaces: 3359818)				$ 76.37
30	WP371502		Clamp, Hose   (Replaces: 371502)				$ 10.38
31	WP285655		(alt.)   (Replaces: 353097)			Immediately	$ 7.55
31	WP285655		Clamp, Hose   (Replaces: 660628)			Immediately	$ 7.55
31	WP285655		(alt.)   (Replaces: 272858)			Immediately	$ 7.55
31	WP285655		(alt.)   (Replaces: 370447)			Immediately	$ 7.55
32	285871		Hose, Pump To Tub   (Replaces: 62731)			Immediately	$ 24.01
35	661538		Switch, Water Temperature		Appelez-nous	-
35	3348352		(alt.)		Appelez-nous	-
35	3347117		(alt.)		Appelez-nous	-
36	WP356418		Screw, Timer Mounting (10-32 X 1) (2)   (Replaces: 96435)				$ 7.13
39	3359237		Panel, Console (for Almond Model)		Appelez-nous	-
39	3359236		Panel, Console (for White Model)		Appelez-nous	-
39	3362532		Panel, Console (for Golden Harvest Model)		Appelez-nous	-
40	689559		Nut, Push-in (2)		Appelez-nous	-
44	WP3364293		Knob, Timer   (Replaces: 3358416)			Immediately	$ 53.51
45	280193		Dial, Timer   (Replaces: 3358446)				$ 51.36
47	WP8538957		Knob, Control   (Replaces: 3358431)				$ 50.17
49	WP388326		Screw, 8-18 (2) (panel To Top)   (Replaces: 3353145)				$ 7.30
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.04
51	3358516		Cap, End (r.h.) (white/chrome)		Appelez-nous	-
51	3358517		Cap, End (r.h.) (almond/chrome)		Appelez-nous	-
55	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.08
58	WP3357331		Clamp, Drain Hose   (Replaces: 3357331)				$ 6.80
59	3348424		Sheild, Suds		Appelez-nous	-
